Model:
Use with smart hosts, several hosts available
-
Features:
It is not affected by the terrain and can measure on rocks, concrete pavements and infill surfaces, solving the disadvantage that MN electrodes cannot be inserted underground. It is easy to carry and can be measured by a single person walking or stopping.

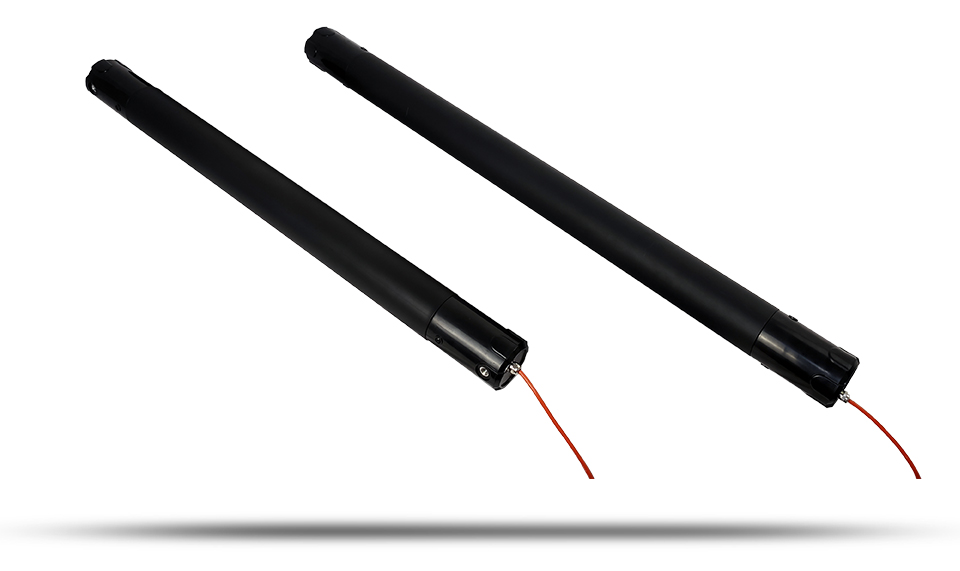

Wired electromagnetic probes are optional and can be used with intelligent hosts, a variety of hosts are available.
Wired electromagnetic probe use will not need to pull MN measurement line, directly using the wired electromagnetic probe signal input, ADMT series wired electromagnetic probe has several specifications products, frequency range 0.001HZ to 30KHZ, measurement depth is not limited, the frequency range is not the same its length and weight is not the same, the sensor accuracy is not the same.
49 Years Research and Development
Stable Accurate
Free upgrading at the original price after purchasing within six months
Unlimited terrain
Unlimited depth
Easy to carry
Solo operation
USE WITH SMART HOST
Adapt to any ground such as cement, rock, ground breaking, ect. A single person can operate it
A variety of smart hosts
Optional use
MAIN TECHNICAL PARAMETERS

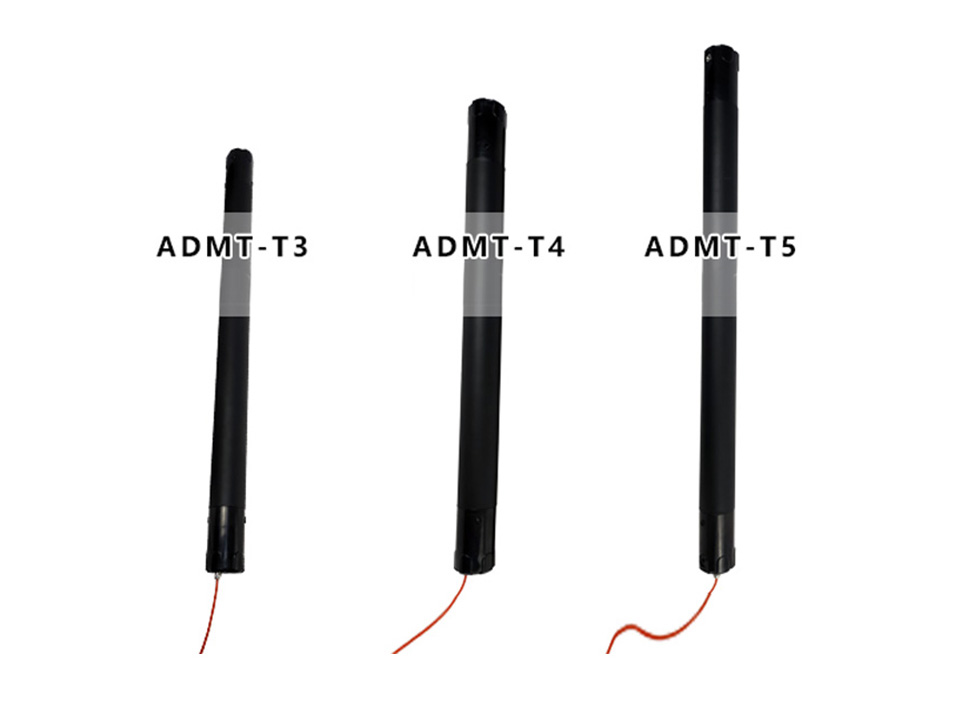

| Model | ADMT-T3 | ADMT-T4 | ADMT-T5 |
|---|---|---|---|
| Depth | No depth limit Recommended depth < 800m | No depth limit Recommended depth < 1200m | No depth limit Recommended depth < 3000m |
| Power | 8W | 12W | 16W |
| Weight | 3.3kg | 4.5kg | 5.7kg |
| Size | φ7*73cm | φ7*87cm | φ7*102cm |
SERVING DOZENS OF COUNTRIES AROUND
THE WORLD, WELL RECEIVED BY USERS
PROFESSIONAL TEAM
QUALIFICATION CERTIFICATE
Certificates and Awards: CE, ISO, China National High-tech Enterprise, China National Technical Invention Patent
DEVELOPMENT HISTORY
1973: Developed the domestic short-wire D75 electrical method
1977: Developed an aerial proton magnetometer
1981: Developed domestic resistivity DW83 electrical method
1988: Developed a multi-functional high-power electric method
2001: Developed the NEP series of natural electric field geophysical probes
2005: Completed the "High-Density Electrical Method" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
2011: Completed the "Controllable Source Geodetic Electromagnetic Instrument (CSAMT)" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
2013: Received the support of the Innovation Fund of the Ministry of Science and Technology, and passed the Shanghai High-tech Achievement Transformation Certification
2017: Developed mobile phone water-finding instrument and geophysical instrument, supporting two-dimensional and three-dimensional automatic mapping of Android system
2018: Independent research and development of 16-channel series products to solve the problem of natural electric field source changes, simple, efficient and precise
2021: Water-finding instrument, geophysical prospecting instrument, aerial geophysical prospecting, earthquake advanced prediction system, etc. will be developed for cloud platform big data automatic analysis function
