ADMT 300S-X Single Channel Groundwater Detector (New version out of former ADMT 200S and 300S in square-box shape)
  • Model:
    Flagship classic version: ADMT-300S-X. Other depths: ADMT-600S-X, ADMT-1200S-X, ADMT-3000S-X
  • Features:
    7-inch touch screen. Real-time imaging, intelligent and precise, adjustable depth. There are three measurement modes: MN electrode measurement, TT measurement with box probe as well as rod probe

    Automatic imaging:7" Android touch screen into 2D, 3D and curved images in real time.

    Precise and stable:Over 40 years of iterative upgrades for high measurement accuracy and stable performance.

    Triple screen interoperability:The instrument screen, mobile phone screen and computer screen are interoperable.

    Intelligent and flexible:MN electrode and TT probe measurements can be switched, with optional wireless probe or water finding gold band.

    A number of invention patents have been obtained (Patent No. ZL201320054153.5, ZL201320303919.9). In particular, the field source correction function of the invention patent "Geomagnetic Field Field Source Correction Method and Measurement Device" ZL201310205318.9 solves the shortcomings of the inconsistent and constantly changing intensity of natural electric field sources.



    Kindly note: ADMT 300S-X is the upgraded and latest version out of former ADMT 200S and 300S with square-box shape which needed to be connected to Android cell phone to generate graphs. AIDU has stopped producing these old models and will not offer after-sale service gradually. Please purchase the new version as stated in this page.





    Single Channel Groundwater Detector


    R & D Since 1973


    Stable Performance    High Accuracy



    Free upgrading at the original price after purchasing within six months




    AI Interpretation


    Accurate
    & Stable


    Auto Imaging


    Multi-screen
    InterComm

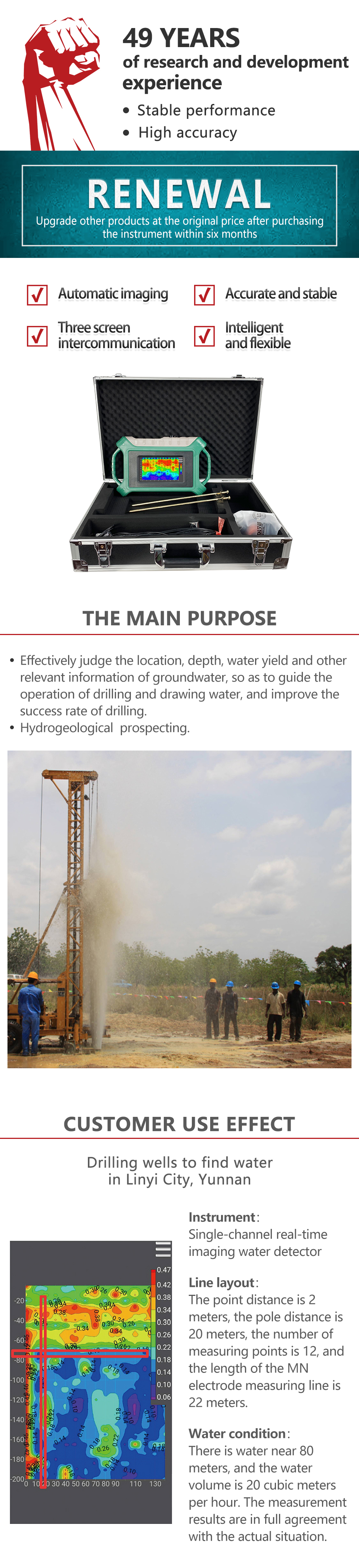

    Applications

    Single channel ground water detector is used to find out the location, depth, yield and other related information of groundwater to guide operations of borewell drilling to increase success rate and guide conducting regional hydrogeological investigations.



    Customer Cases


    Site: Borehole Drilling in Linyi Shandong

    Product: Single Channel Groundwater Detector ADMT-300SX

    Operation: Point spacing was 2 meters , 12 points, Survey line 22 meters.

    Results: Water flowed out at about 80 meters. Yield was 20 cubic meters per hour. Results were in sync with the image.

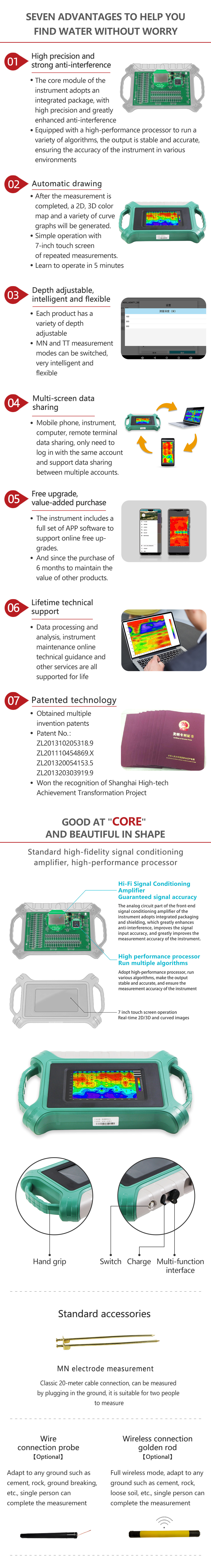

    SEVEN ADVANTAGES
    TO HELP YOU EXPLORE WORRY-FREE

    High Precision and Strong Anti-interference

    2-1dtdzs.pngThe core module of the instrument adopts integrated packaging, which has high precision and greatly enhanced anti-interference. It is equipped with a high-performance processor to run a variety of algorithms, and the output is stable and accurate, ensuring the accuracy of the instrument in various environments

    Auto Plotting

    2-2dtdzs.pngAfter the measurement is completed, two-dimensional and three-dimensional color pictures and various curves are generated immediately. It is equipped with a 7-inch touch screen and is easy to operate. You can learn to operate it in 5 minutes

    High Operation Flexibility

    2-3dtdzs.pngA variety of adjustable depths,Two interchangable measurement modes, MN and TT

    Multi-screen Data Sharing

    2-4dtdzs.pngTo share data on mobile phones, instruments, computers, and remote terminals, you only need to log in with the same account, and data sharing is supported between multiple accounts.

    AI Interpretation

    aifx (2).pngImportation of AI model improves accuracy and intelligently provides data interpretation and well drilling suggestions. This solves the problem of large differences in local automatic analysis results for different geological analyses

    Free App and value-preserving Upgrade

    2-5dtdzs.pngThe instrument includes a full set of APP software, supports free online upgrades, and can be redeemed for other products within 6 months of purchasefreely

    Life time Expert Assistance

    2-6-1.pngData processing analysis, instrument maintenance, online technical guidance and other services are all lifetime technical support


    GOOD AT CORE AND BEAUTIFUL IN SHAPE



    A. High-fidelity signal conditioning amplifier to ensure signal accuracy. The
    analog circuit part of the front-end signal conditioning amplifier of the instrument is shielded by an integrated package, which greatly enhances the anti-interference, improves the signal output accuracy, and greatly improves the instrument measurement accuracy.


    B. High-performance processor, running a variety of algorithms.
    Using a high-performance processor, running a variety of algorithms, the output is stable and accurate, ensuring the measurement accuracy of the instrument.


    C. The 7-inch touch screen operates
    to generate 2D/3D and curve images in real time





    a. switch  b. charger  c. multi-function interface  d. hand grip





    High-Performance Accessories



    e. MN electrode measurement [standard configuration]
    classic 20-meter cable connection, can be measured by plugging it into the ground, and it is suitable for two people to measure.


    f. Wired electromagnetic probe [optional]
    is suitable for any ground such as cement, rock, frozen soil, etc., and a single person can complete the measurement


    g. Wireless golden hoop [optional]
    completely wireless mode, suitable for any ground such as cement, rock, frozen soil, etc., one person can complete the measurement

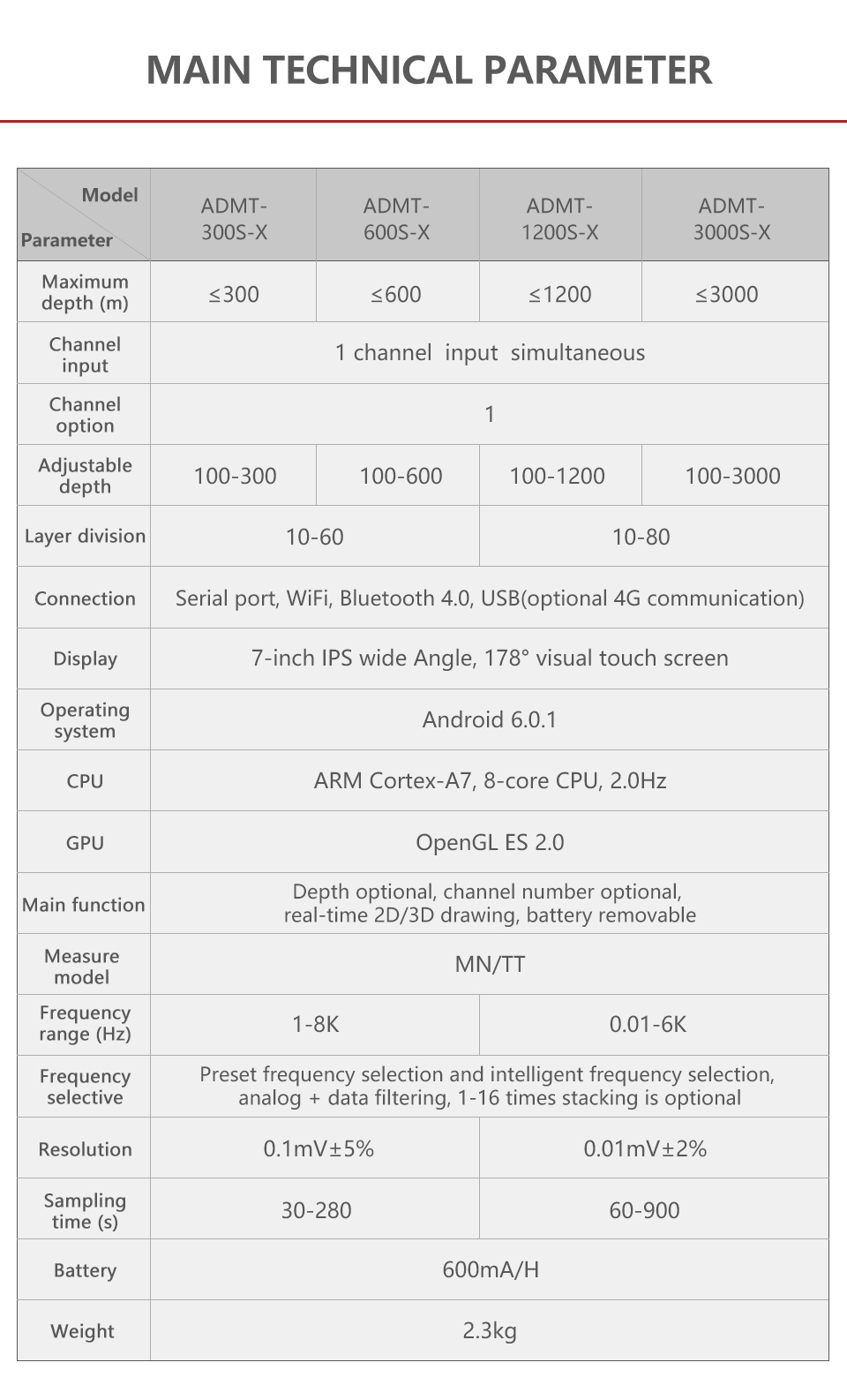

    TECHNICAL PARAMETERS

    VersionsADMT-300S-XADMT-600S-XADMT-1200S-XADMT-3000S-X
    Max Depth (m)≤300≤600≤1200≤3000
    Sensing Mode1 channel MN input
    Number of Channels1
    Depth Options (m)100-300100-600100-1200100-3000
    Scan Interval (m)10-6010-80
    ConnectionsSerial port, Wifi, Bluetooth 4.0, USB (optional 4G)
    Display7-inch IPS wide-angle 178° visual touch screen
    OSAndroid 6.0.1
    CPUARM Cortex-A7 8-core CPU 2.0Hz
    GPUOpenGL ES 2.0
    FeaturesMultiple options of depths, 2D/3D plotting, removable battery
    Sensing ModeMN/TT
    Frequency Range (hz)1-8K0.01-8K
    FilteringPreset or intelligent frequency selection, analog + data filtering 1-16 times superposition optional
    Discrim.0.1mV±5%0.01mV±2%
    Acquisition Time (s)30-28060-900
    Battery 600mA/H
    Console Weight1.6kg

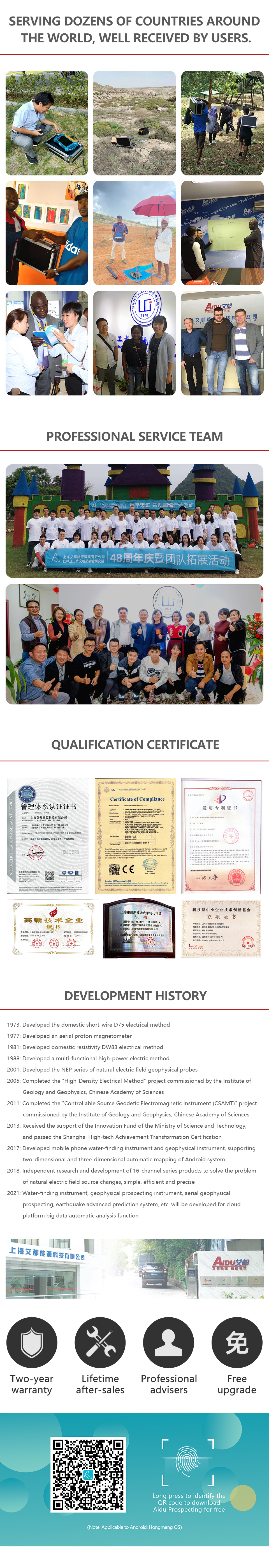

    SERVING DOZENS OF COUNTRIES AROUND
    THE WORLD, WELL RECEIVED BY USERS


    PROFESSIONAL SERVICE TEAM


    QUALIFICATION CERTIFICATE

    Certificates and Awards: CE, ISO,  China National High-tech Enterprise, China National Technical Invention Patent


    DEVELOPMENT HISTORY

    1973: Developed the domestic short-wire D75 electrical method
    1977: Developed an aerial proton magnetometer
    1981: Developed domestic resistivity DW83 electrical method
    1988: Developed a multi-functional high-power electric method
    2001: Developed the NEP series of natural electric field geophysical probes
    2005: Completed the "High-Density Electrical Method" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
    2011: Completed the "Controllable Source Geodetic Electromagnetic Instrument (CSAMT)" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
    2013: Received the support of the Innovation Fund of the Ministry of Science and Technology, and passed the Shanghai High-tech Achievement Transformation Certification
    2017: Developed mobile phone water-finding instrument and geophysical instrument, supporting two-dimensional and three-dimensional automatic mapping of Android system
    2018: Independent research and development of 16-channel series products to solve the problem of natural electric field source changes, simple, efficient and precise
    2021: Water-finding instrument, geophysical prospecting instrument, aerial geophysical prospecting, earthquake advanced prediction system, etc. will be developed for cloud platform big data automatic analysis function
