Automatic imaging.The 10.1" Android touch screen is intelligent in real time into 2D, 3D and curved images.
Precise and stable.The disadvantages of natural electromagnetic field sources, which are inconsistent in size and change from time to time, are solved and the accuracy is greatly improved.
Triple screen interoperability.The instrument screen, mobile phone screen and computer screen are interoperable.
Intelligent and flexible.1-30 channels are available and an optional electromagnetic probe is available for TT probe measurement mode, which also supports wireless connection to the Aidoo Golden Band.
Maximum 5000m exploration depth, number of channels, electric field and electromagnetic field measurement modes selectable.
The 32-channel high-density MT electrometer uses 32 channels for simultaneous input measurement, solving the defect of MT field source changing at any time and obtaining a stable field source, and the exploration depth reaches 5000m, breaking the depth limit of traditional high-density electrometer.
And with MN electrode and TT electromagnetic probe measurement modes, 1-32 measurement channels selectable, data superimposed filtering selectable, optional wired probe or wireless connection exploration gold band data acquisition.

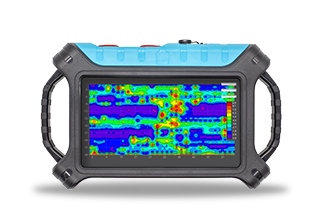

A 10.1" Android touch screen with real-time imaging is standard, and the instrument screen, mobile phone screen and computer screen are interoperable. It is very convenient to operate in the field and is highly appreciated by our customers.
49 Years Research and Development
Free upgrading at the original price after purchasing within six months
ADMT series products use the earth's natural electromagnetic field as the working field source to study the electrical structure inside the earth. According to the principle that electromagnetic waves of different frequencies have different skin depths in the conductive medium, the earth's electromagnetic response sequence from high frequency to low frequency is measured on the surface of the earth. , to study the difference in electrical changes of underground geological bodies at different depths, and to determine the occurrence state of underground geological bodies
Since the development of the short-wire D75 electrical method in 1973, we have been working hard. This high-density MT geophysical probe uses 16-channel simultaneous input measurement to obtain a stable field source, solves the problem of natural electric field changes at any time, and solves repeated measurement data. The shortcomings of different profiles, combined with light and efficient, precise and intelligent and advanced Internet of Things technology, are well received by new and old users.
Water Source Survey
Mineral Exploration: Detailed survey and general survey of precious metallic and non-metallic minerals such as gold, platinum, silver, lithium, etc
Treasure Exploration: Exploration and survey for rare minerals such as jade, gems, ebony, crystals, etc

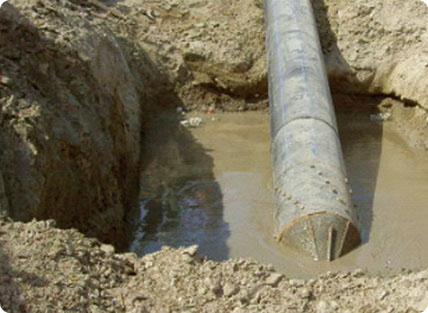

Water Source Survey: It is used for detailed investigation and general survey exploration for finding groundwater
Engineering Investigation: Steel, concrete pipelines, underground facilities detection
Burma Maoqi open-pit mining exploration
Instrument: Using a high-density MT electrometer
The gold deposit is located in Maoqi, Myanmar. The gold deposit in this area belongs to the quartz vein type gold deposit. The quartz vein generally shows a red high resistivity reaction on the survey map. The red high-resistance area on the survey map is intermittent, and the actual situation of the gold ore veins in this area is also not continuous. One section is good and the other is not good. The gold veins reflected by the measurement profile are the same as the actual mining rules.

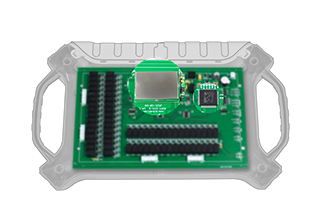

The core module of the instrument adopts an integrated package, with high precision and greatly enhanced anti-interference.
Equipped with a high-performance processor to run a variety of algorithms, the output is stable and accurate, ensuring the accuracy of the instrument in various environments.
After the measurement is completed, a 2D, 3D color map and a variety of curve graphs will be generated.
Simple operation with 10.1-inch touch screen.
Learn to operate in 5 minutes.
Each product has a variety of adjustable depths, the number of channels can be set.
The two measurement modes of MN and TT can be switched, which is very intelligent and flexible.

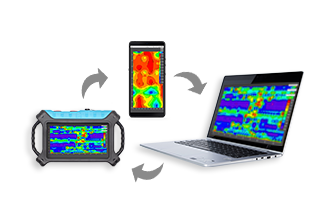

Mobile phone, instrument, computer, remote terminal data sharing, only need to log in with the same account.
And support data sharing between multiple accounts.
The instrument includes a full set of APP software to support online free upgrades.
And since the purchase of 6 months to maintain the value of other products.
Data processing and analysis, instrument maintenance online technical guidance and other services are all supported for life.
Obtained multiple invention patents
(Patent No.: ZL201310205318.9, ZL201110454869.X, ZL201320054153.5, ZL201320303919.9)

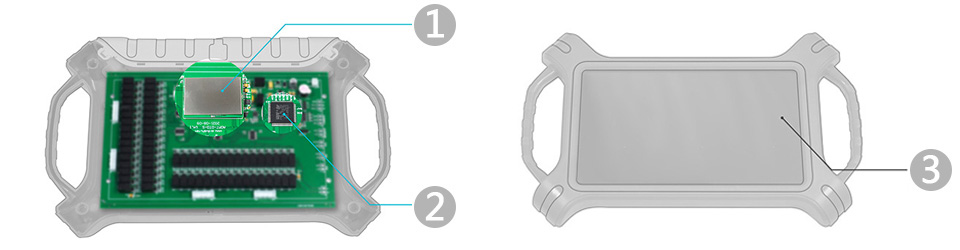

① Hi-Fi Signal Conditioning Amplifier Guaranteed signal accuracy
The analog circuit part of the front-end signal conditioning amplifier of the instrument adopts integrated packaging and shielding, which greatly enhances anti-interference, improves the signal input accuracy, and greatly improves the measurement accuracy of the instrument.
② High performance processor Run multiple algorithms
Adopt high-performance processor, run various algorithms, make the output stable and accurate, and ensure the measurement accuracy of the instrument
③ 10.1 inch touch screen operation
Real-time 2D/3D and curved images

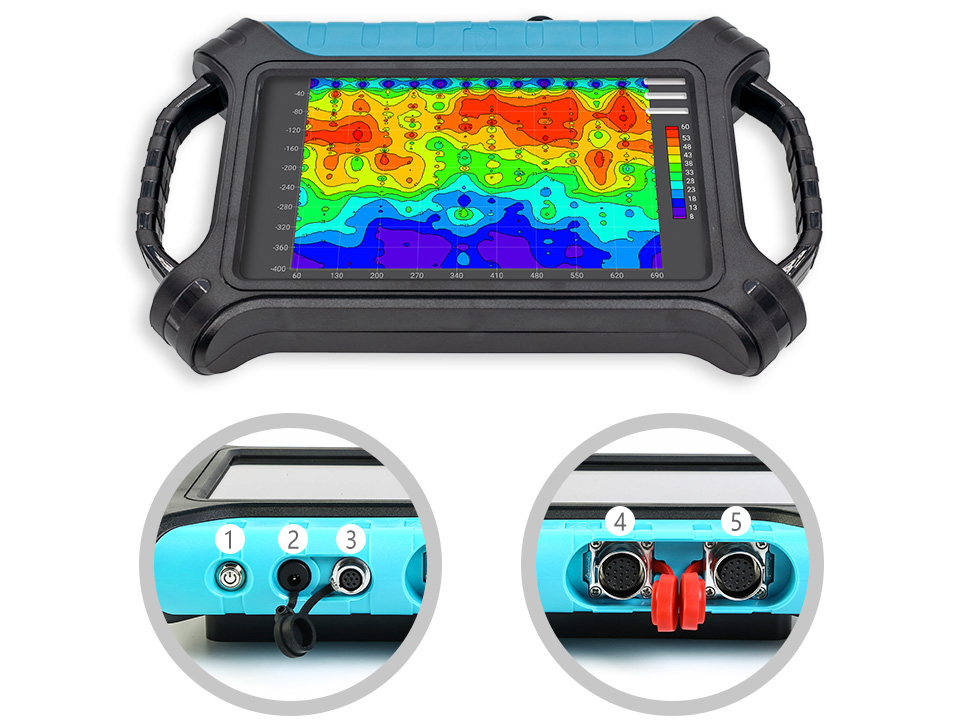

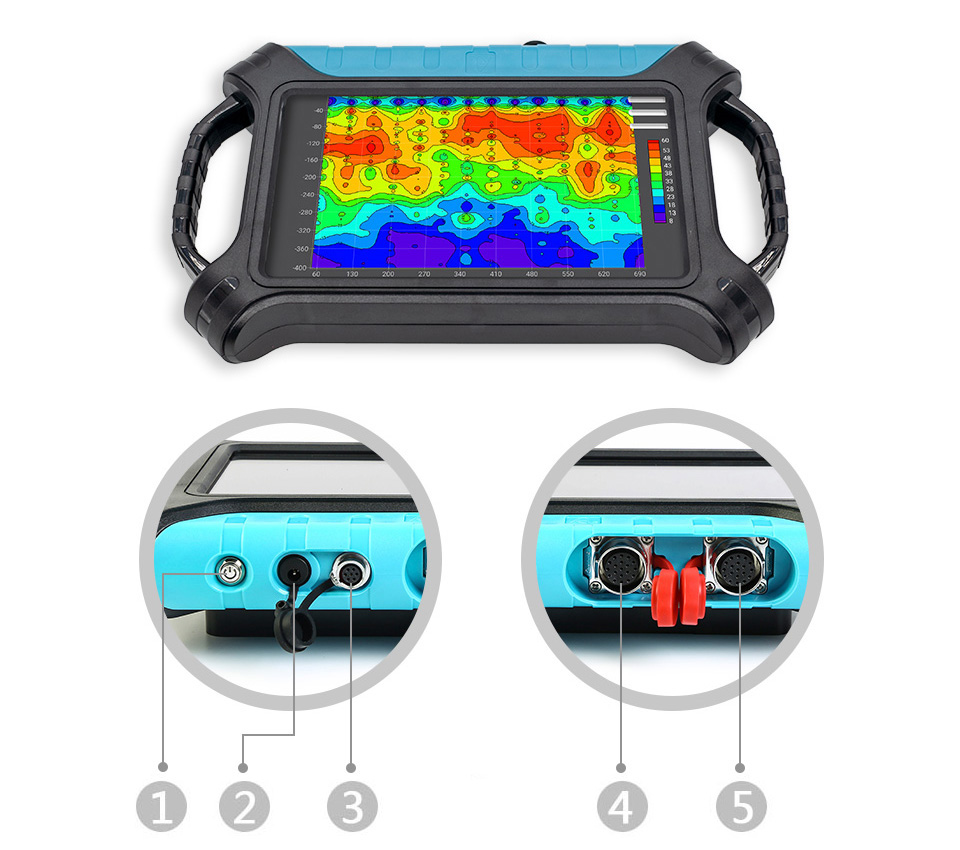

① Switch ② Charge ③ Multi-function interface ④ 17-32 Channels ⑤ 1-16 Channels

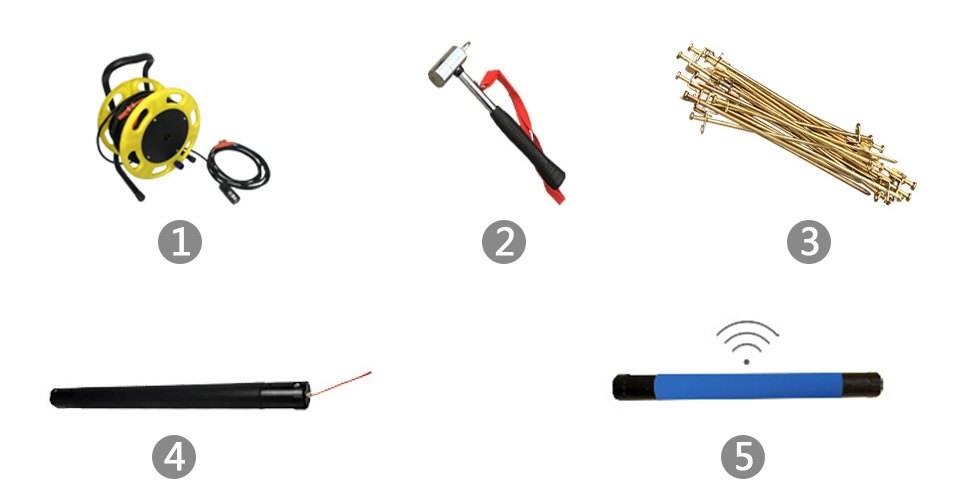

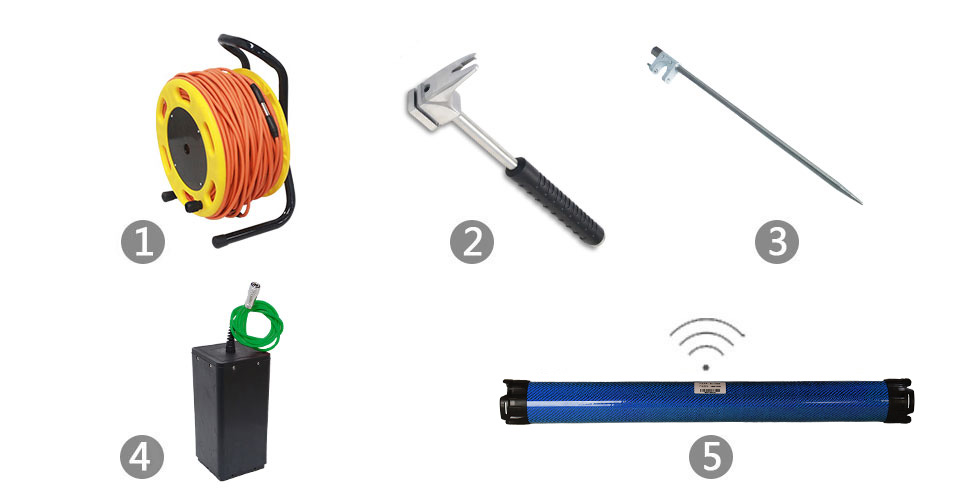

① Cable ② Electrode hammer ③ Electrodes
④ Wired connection probe (optional)
It is suitable for any ground such as cement, rock, ground breaking, etc. It can be measured by a single person.
⑤ Wireless connection golden hoop (optional)
Full wireless mode. It is suitable for any ground such as cement, rock, ground breaking, etc. It can be measured by a single person.
|32 channels input simultaneous, electrode distance≤5m|
|5/10/20/40/60/100/ 200/300/500/800/ 1200/2000/3000/4000/5000m|
|Connection||Serial port, WiFi, Bluetooth 4.0, USB|
|Display||10.1 -inch, IPS wide Angle, 178° visual touch screen|
|Android6.0.1, RAM 1GB, ROM 8GB (expandable 128GB)|
|CPU||ARM Cortex-A7, 8-core CPU, 2.0Hz|
|GPU||OpenGL ES 2.0|
|Depth optional, channel number optional, real-time 2D/3D imaging, battery removable|
|Preset frequency selection and intelligent frequency selection, analog + data filtering, 1-16 times stacking is optional|
Certificates and Awards: CE, ISO, China National High-tech Enterprise, China National Technical Invention Patent
1973: Developed the domestic short-wire D75 electrical method
1977: Developed an aerial proton magnetometer
1981: Developed domestic resistivity DW83 electrical method
1988: Developed a multi-functional high-power electric method
2001: Developed the NEP series of natural electric field geophysical probes
2005: Completed the "High-Density Electrical Method" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
2011: Completed the "Controllable Source Geodetic Electromagnetic Instrument (CSAMT)" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
2013: Received the support of the Innovation Fund of the Ministry of Science and Technology, and passed the Shanghai High-tech Achievement Transformation Certification
2017: Developed mobile phone water-finding instrument and geophysical instrument, supporting two-dimensional and three-dimensional automatic mapping of Android system
2018: Independent research and development of 16-channel series products to solve the problem of natural electric field source changes, simple, efficient and precise
2021: Water-finding instrument, geophysical prospecting instrument, aerial geophysical prospecting, earthquake advanced prediction system, etc. will be developed for cloud platform big data automatic analysis function
