Model:
ADMT-1B
-
Features:
The ADMT-1B water detector by AIDU, built on electrical resistivity methods, features advanced circuitry for high accuracy, a multilingual interface, and a waterproof ABS casing, supporting four-pole sounding and central gradient measurements.
High precision：The latest circuit design, single-chip control, automatic noise reduction, and digital filtering to greatly improve the measurement accuracy and stability.
Simple operation：User-friendly interface with a variety of built-in formula calculations.
Versatile configurationt：Supports multiple electrode arrangements, including four-pole sounding and central gradient.
R&D Since 1973
Stable Accurate
6-Month Trade-Up Guarantee
Compact
& Lightweight
Accurate
& Stable
Fully
Equipped
Simple
Operation
PRINCIPLE & FEATURES
The ADMT-1B water detector by AIDU, built on electrical resistivity methods, features advanced circuitry for high accuracy, a multilingual interface, and a waterproof ABS casing, supporting four-pole sounding and central gradient measurements. Utilizing apparent resistivity parameters, it is widely used for locating groundwater.
VERSATILE APPLICATIONS
Groundwater Exploration
Iron Mineral Exploration
Environmental Census
Engineering Investigation
Detailed surveys and general exploration of groundwater
Survey and exploration of various metallic and non-metallic minerals
It is widely used in environmental protection survey, electric power design, engineering prospecting, geothermal prospecting, coal mine goaf, geological disaster survey, etc.
SIX ADVANTAGES
TO HELP YOU EXPLORE WORRY-FREE
High precision
Adopting new circuit design,
single-chip control, automatic noise
reduction, and digital filtering to
greatly improve measurement
accuracy and stability
Simple operation
Humanized man-machine interface,
built-in formulas for various devices
to directly read resistivity
Fully equipped
It can realize a variety of layout methods such as quadrupole sounding and intermediate gradient
Safe and reliable
Overvoltage, overcurrent, battery protection and power display, data power-down protection functions, etc.
Lifetime Technical Support
Comprehensive services including instrument repair and technical guidance provided for the lifetime of the product.

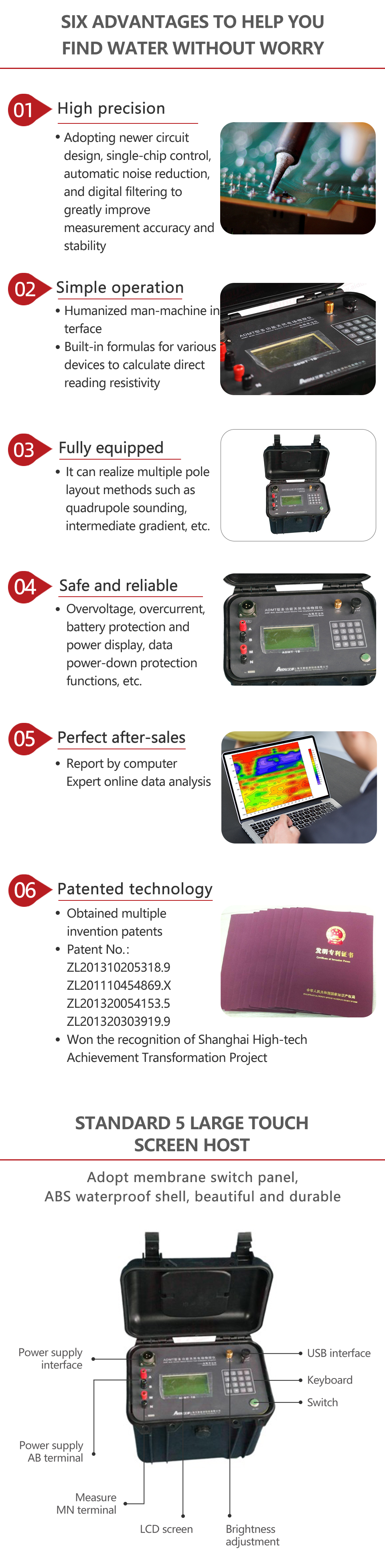

BEAUTIFUL IN SHAPE
① Power connector ② Power supply AB terminals ③ MN Measurement terminals ④ LCD screen ⑤ Brightness adjustment ⑥ USB interface ⑦ Keyboard ⑧ Swtich

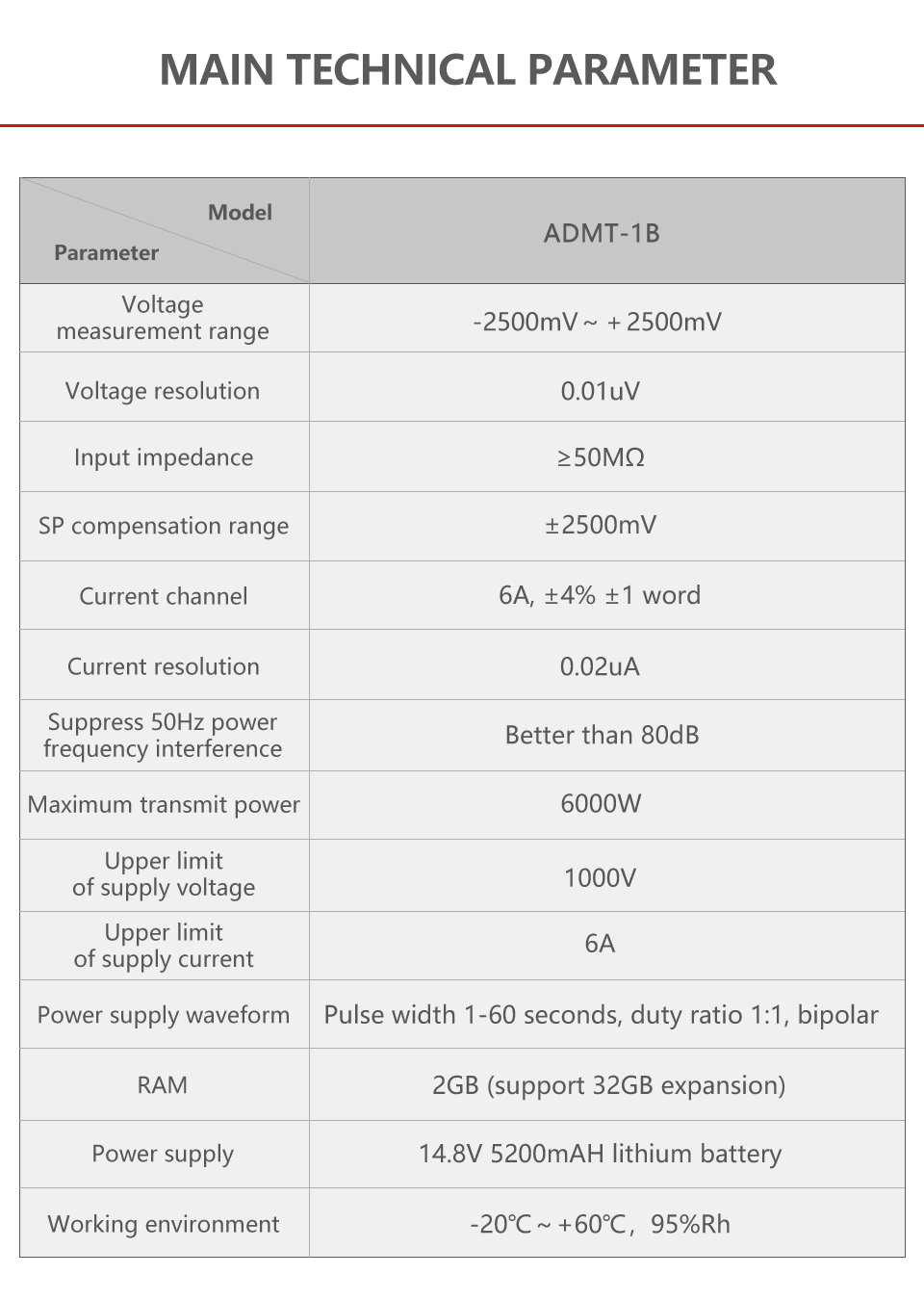

MAIN MODELS
AND TECHNICAL PARAMETERS
| Parameter | ADMT-1B |
|---|---|
| Voltage measurement range | -2500mV～＋2500mV |
| Voltage resolution | 0.01uV |
| Input impedance | ≥50MΩ |
| SP compensation range | ±2500mV |
| Current channel | 6A, ±4% ±1digit |
| Current resolution | 0.02uA |
| Suppress 50Hz power frequency interference | Better than 80dB |
| Max. transmit power | 6000W |
| Upper limit of supply voltage | 1000V |
| Upper limit of supply current | 6A |
| Power supply waveform | Pulse width 1-60 seconds, duty ratio 1:1, bipolar |
| RAM | 2GB (support 32GB expansion) |
| Power supply | 14.8V 5200mAH lithium battery |
| Working environment | -20℃～+60℃，95%Rh |
Trusted by Millions, CCTV Recommended
SERVING THE WORLD
PROFESSIONAL SERVICE TEAM
QUALIFICATION CERTIFICATE
Certificates and Awards: CE, ISO, China National High-tech Enterprise, China National Technical Invention Patent
R&D Since 1973
1973: Developed the domestic short-wire D75 electrical method
1977: Developed an aerial proton magnetometer
1981: Developed domestic resistivity DW83 electrical method
1988: Developed a multi-functional high-power electric method
2001: Developed the NEP series of natural electric field geophysical probes
2005: Completed the "High-Density Electrical Method" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
2011: Completed the "Controllable Source Geodetic Electromagnetic Instrument (CSAMT)" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
2013: Received the support of the Innovation Fund of the Ministry of Science and Technology, and passed the Shanghai High-tech Achievement Transformation Certification
2017: Developed mobile phone water-finding instrument and geophysical instrument, supporting two-dimensional and three-dimensional automatic mapping of Android system
2018: Independent research and development of 16-channel series products to solve the problem of natural electric field source changes, simple, efficient and precise
2021: Water-finding instrument, geophysical prospecting instrument, aerial geophysical prospecting, earthquake advanced prediction system, etc. will be developed for cloud platform big data automatic analysis function
2022: The company was renamed Shanghai Aidu Intelligent Detection Technology Co. Ltd, and expanded its business operations
2023: Successfully developed a range of proprietary products, including the all-channel speedy ground water detectors, magnetotelluric instruments, and high-density three-component magnetometers
