ACZ-8 Broadband Low Disturbance Proton Magnetometer
  • Model:
    ACZ-8
  • Features:
    Range: 20,000 nT to 100,000 nT, resolution: 0.1 nT. No global adjustments needed. High-performance circuit for improved accuracy


    R&D Since 1973


    Stable       Accurate



    Free upgrading at the original price after purchasing within six months

    The ACZ-8 wide-band low-disturbance proton precession magnetometer (PPM) is equipped with high-performance components and a refined amplifier circuit, offering precise measurements. With a range of 20,000 nT to 100,000 nT and a resolution of 0.1 nT, it requires no special adjustments globally. This versatile instrument can be used as a portable, mobile, or base station magnetometer, featuring large storage capacity, high resolution, and flexibility.




    High
    resolution


    Accurate
    & Stable


    Built-in
    GPS


    Large
    storage



    MEET YOUR VARIOUS NEEDS


    Archaeological Exploration


    Disaster Survey


    Archaeological Exploration: Used for locating underground vaults, tombs, and excavation sites.

    Disaster Survey:Used for detecting underground voids, mined-out areas, and subsidence cavities.

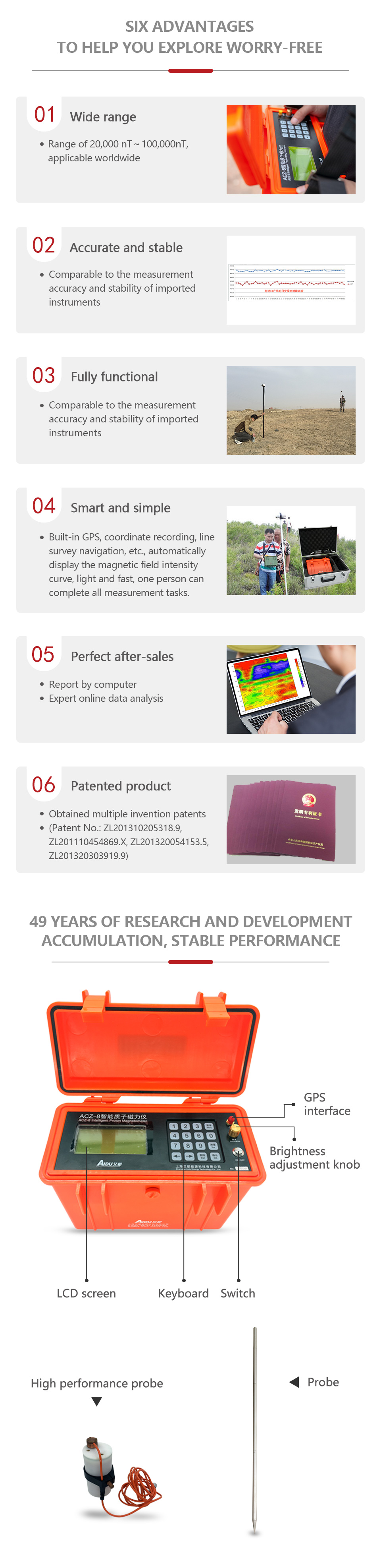

    FIVE ADVANTAGES
    TO HELP YOU EXPLORE WORRY-FREE

    Global Compatibility

    01.jpgThe ACZ-8 proton magnetometer offers a true range of 20,000 nT to 100,000 nT with automatic adjustment, requiring no changes worldwide. It supports full-range auto-tuning as well as manual tuning

    Precision and Stability

    02.pngCustom compound media ensures reliable performance with lower freezing points and higher boiling points. Built-in precise clock and GPS synchronization guarantee accurate timing between base and mobile stations, matching the accuracy and stability of leading global instruments

    Comprehensive Functionality

    03.jpgEquipped with GPS, coordinate recording, and line navigation for field testing. Each measurement point stores magnetic data, coordinates, time, and temperature, with direct data export via USB.

    Smart and Simple

    04.jpgAutomatically displays magnetic field curves and supports software for diurnal corrections, contour maps, and profile charts. Manual tuning is also possible, allowing one person to handle all measurements quickly and efficiently

    Lifetime Technical Support

    10.pngComprehensive after-sales services, including data analysis, instrument repair, and online technical guidance, are all covered by lifetime support


    BEAUTIFUL IN SHAPE




    ① LCD screen    ② Keyboard    ③ Switch

    ④ Brightness control   ⑤ GPS interface

    ⑥ High performance probe    ⑦ Probe

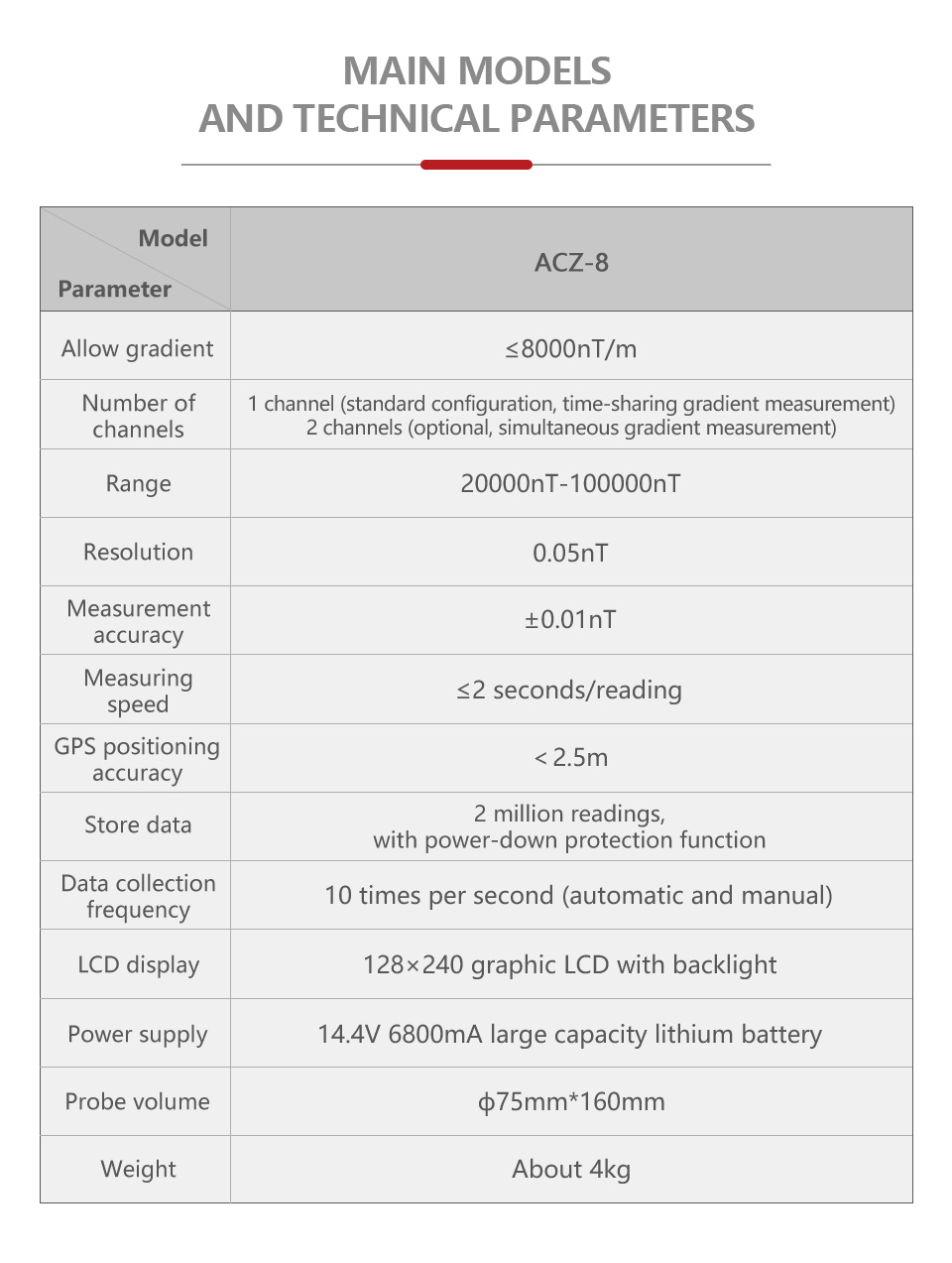

    MAIN MODELS
    AND TECHNICAL PARAMETERS

    ParameterACZ-8
    Allow gradient≤8000nT/m
    Number of channels1 channel (standard configuration, time-sharing gradient measurement)
    2 channels (optional, simultaneous gradient measurement)
    Range20,000nT-100,000nT
    Resolution0.1nT
    Precision±1nT
    Measuring speed≤2 seconds/reading
    GPS precision<2.5m
    Data Storage2 million readings, with power-down protection function
    Data collection frequency10 times per second (automatic and manual)
    Display128×240 graphic LCD with backlight
    Power supply14.4V 6800mA large capacity lithium battery
    Probe volumф75mm*160mm
    Weight2.75 kg

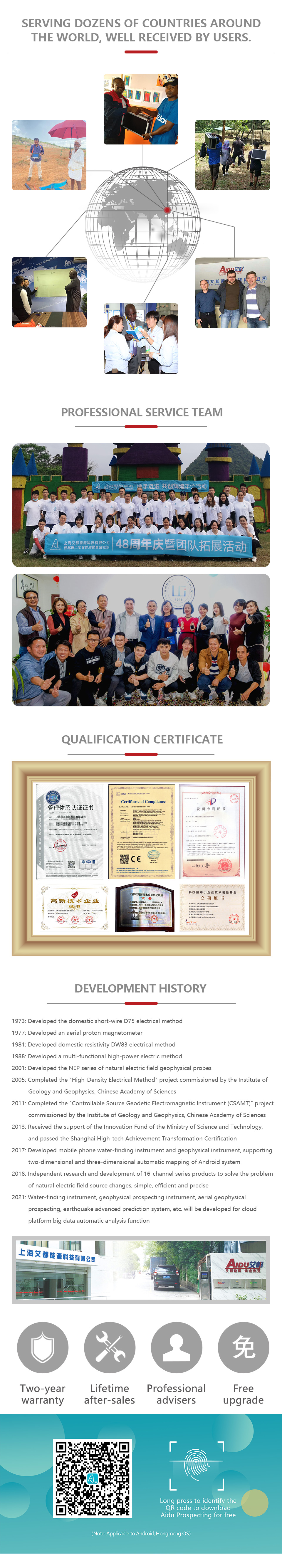

    Trusted by Millions, CCTV Recommended


    SERVING THE WORLD


    PROFESSIONAL SERVICE TEAM


    QUALIFICATION CERTIFICATE

    Certificates and Awards: CE, ISO,  China National High-tech Enterprise, China National Technical Invention Patent


    R&D Since 1973

    1973: Developed the domestic short-wire D75 electrical method
    1977: Developed an aerial proton magnetometer
    1981: Developed domestic resistivity DW83 electrical method
    1988: Developed a multi-functional high-power electric method
    2001: Developed the NEP series of natural electric field geophysical probes
    2005: Completed the "High-Density Electrical Method" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
    2011: Completed the "Controllable Source Geodetic Electromagnetic Instrument (CSAMT)" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
    2013: Received the support of the Innovation Fund of the Ministry of Science and Technology, and passed the Shanghai High-tech Achievement Transformation Certification
    2017: Developed mobile phone water-finding instrument and geophysical instrument, supporting two-dimensional and three-dimensional automatic mapping of Android system
    2018: Independent research and development of 16-channel series products to solve the problem of natural electric field source changes, simple, efficient and precise
    2021: Water-finding instrument, geophysical prospecting instrument, aerial geophysical prospecting, earthquake advanced prediction system, etc. will be developed for cloud platform big data automatic analysis function
    2022: The company was renamed Shanghai Aidu Intelligent Detection Technology Co. Ltd, and expanded its business operations
    2023: Successfully developed a range of proprietary products, including the all-channel speedy ground water detectors, magnetotelluric instruments, and high-density three-component magnetometers





    Two-year
    Warranty


    Lifetime
    After-sales


    Expert
    Support


    Free
    Upgrade
