Three-dimensional Matrix High-density Electromagnetic Exploration System
  • Model:
    ADMT-WF100GT1
  • Features:

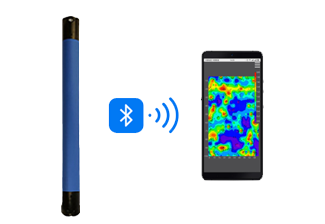

    Products advantages: 1.Fully wireless. No complicated cables. 2.One button minimalist design. Only one power button, no other button. 3.Connecting mobile phone by bluetooth. Connecting mobile phone for detection/mapping/logging well. 4.Detec

    Fully wireless detection.

    length: 46-130cm, Light-weight: 1.1-3.6KG.

    Handle by one person.

    Processing by put it on the ground or hold it or carry it .




    49 Years Research and Development


    Stable       Accurate



    Free upgrading at the original price after purchasing within six months

    The matrix MT electromagnetic geophysical probe uses the magnetotelluric field as the source, and is composed of more than 6 geophysical geophysical probes of the same model. It can use two measurement modes: MN electrode or TT probe, which can measure both MT electric field and MT electromagnetic field. Fast collection of multiple parameters. Form a digital and intelligent matrix measurement; this equipment is suitable for a variety of application scenarios, widely used in water prospecting, mineral prospecting, geothermal hot spring and other resource surveys, and also used in dyke piping detection, cavities and pipelines and other underground buried objects detection.




    Completely
    wireless


    Adjustable
    depth


    Freedom of
    combination


    Smart &
    simple



    MEET YOUR VARIOUS NEEDS


    Resources Survey


    Buried Object Detection


    Resources Survey: Resources exploration such as groundwater searching, geothermal hot springs searching, mineral prospecting, etc

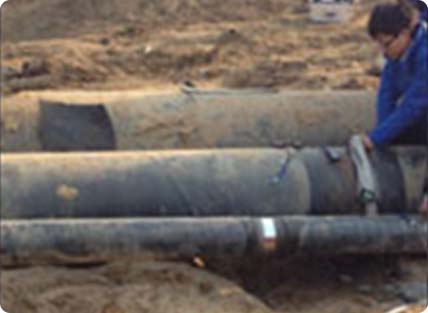

    Buried Object Detection: Dikes and dams piping detection, cavities and pipelines and other underground buried objects detection



    Five ADVANTAGES
    TO HELP YOU EXPLORE WORRY-FREE

    Simple and efficient

    01.pngOn the basis of traditional single-channel instruments, the efficiency is increased by 3-5 times, and the shortcomings of inconsistency and change of the natural electromagnetic field source intensity are completely solved

    One-key measurement

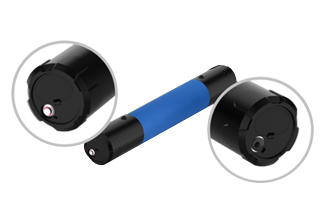

    02.pngThe instrument has only one power button, no extra buttons are needed, which improves the efficiency of use. The top power button integrates a surround indicator, and the bottom power interface

    Wireless networking

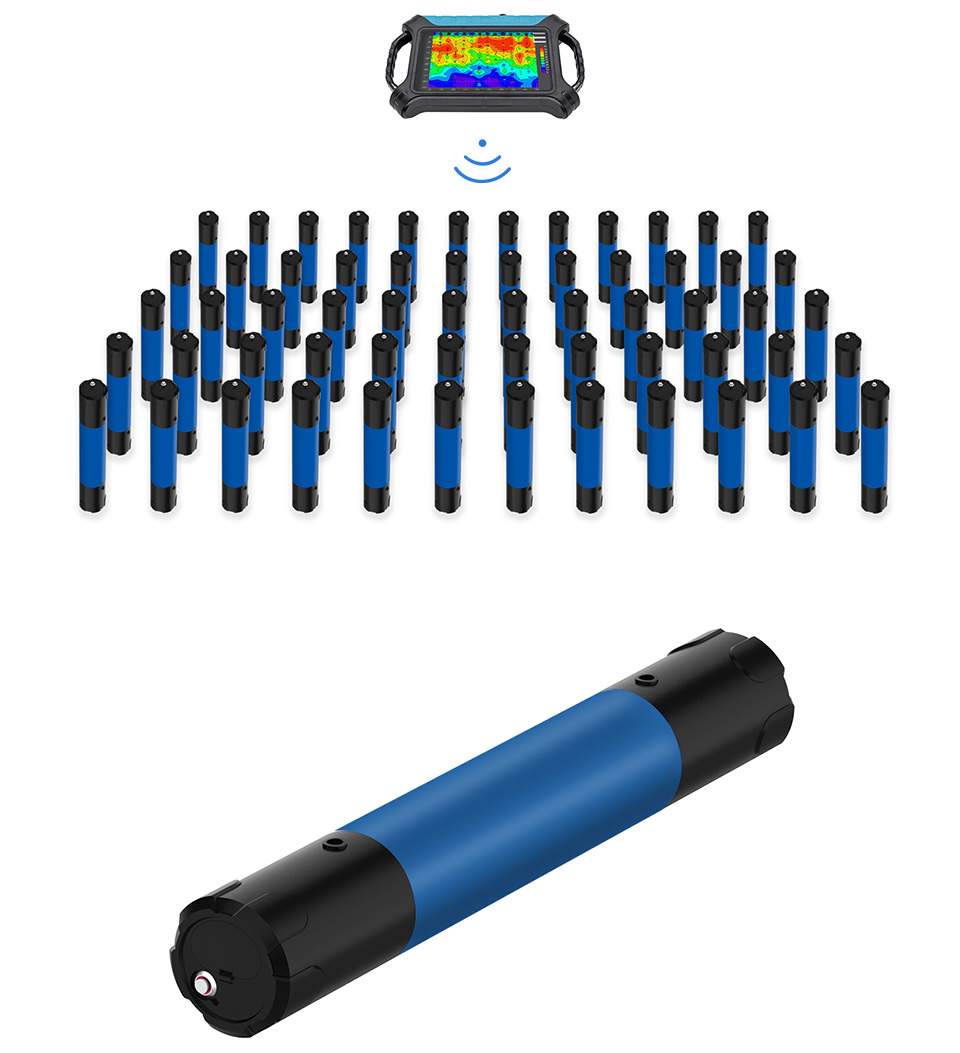

    03.pngSupport 1-88 sets of golden hoop bar wireless networking collection, data collection at the same time, electric field, electromagnetic multi-parameter measurement, to meet the needs of professional engineering

    Perfect after-sales

    10.pngReport by computer

    Expert online data analysis

    Patented product

    11.pngObtained multiple invention patents

    (Patent No.: ZL201310205318.9, ZL201110454869.X, ZL201320054153.5, ZL201320303919.9)


    FREE COMBINATION






    MINIMALIST DESIGN

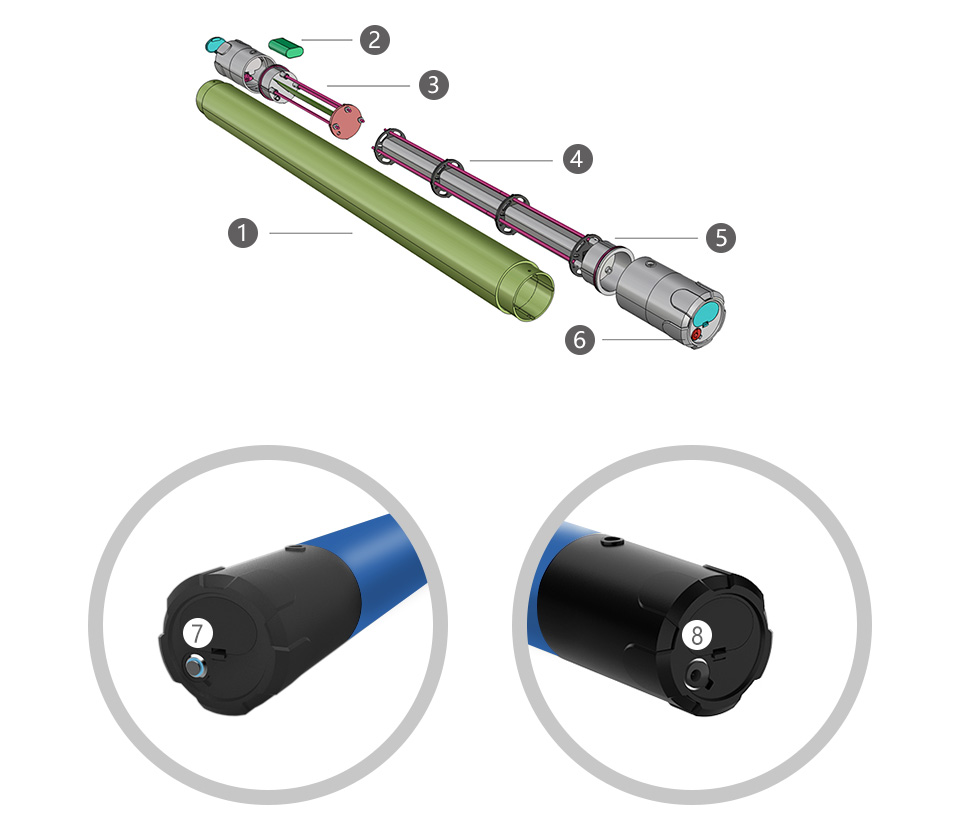

    ① ABS shell    ② Lithium battery     ③ Host circuit    ④ Electromagnetic probe              ⑤ Installation structure Waterproof and dustproof     ⑥ Switch charging
    ⑦ Power button     ⑧ Power connector



    MODELS AND TECHNICAL PARAMETERS

    ModelADMT-WF100GT1
    Adjustable
    depth (m)
    5/10/20/40/80/100m
    Battery8.4V 3300mAH lithium battery
    ConnectionWIFI
    MN
    electrode
    Copper 12mm φ12 or self-made electrode

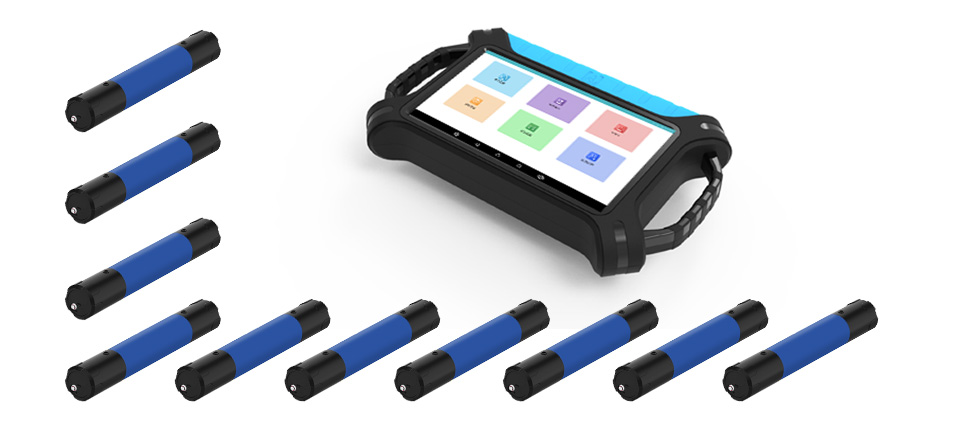

    Display10.1 inch Android system dedicated control host
    Main
    functions
    automatic imaging
    TT EMI
    coil (mm/w)
    150/0.2
    TT EMI
    core (KmH/m)
    120
    Working
    condition
    Any grounds
    Frequency
    range (Hz)
    100-10K
    Measuring
    mode
    MN/TT
    Resolution0.001mV±2%
    Sampling
    time (s)
    40-120
    Depth
    layering
    5-100
    Length
    Weight (cm/kg)
    50 / 2



    SERVING DOZENS OF COUNTRIES AROUND
    THE WORLD, WELL RECEIVED BY USERS


    PROFESSIONAL TEAM


    QUALIFICATION CERTIFICATE

    Certificates and Awards: CE, ISO,  China National High-tech Enterprise, China National Technical Invention Patent


    DEVELOPMENT HISTORY

    1973: Developed the domestic short-wire D75 electrical method
    1977: Developed an aerial proton magnetometer
    1981: Developed domestic resistivity DW83 electrical method
    1988: Developed a multi-functional high-power electric method
    2001: Developed the NEP series of natural electric field geophysical probes
    2005: Completed the "High-Density Electrical Method" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
    2011: Completed the "Controllable Source Geodetic Electromagnetic Instrument (CSAMT)" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
    2013: Received the support of the Innovation Fund of the Ministry of Science and Technology, and passed the Shanghai High-tech Achievement Transformation Certification
    2017: Developed mobile phone water-finding instrument and geophysical instrument, supporting two-dimensional and three-dimensional automatic mapping of Android system
    2018: Independent research and development of 16-channel series products to solve the problem of natural electric field source changes, simple, efficient and precise
    2021: Water-finding instrument, geophysical prospecting instrument, aerial geophysical prospecting, earthquake advanced prediction system, etc. will be developed for cloud platform big data automatic analysis function





    Two-year
    Warranty


    Lifetime
    After-sales


    Professional
    Advisors


    Free
    Upgrade
