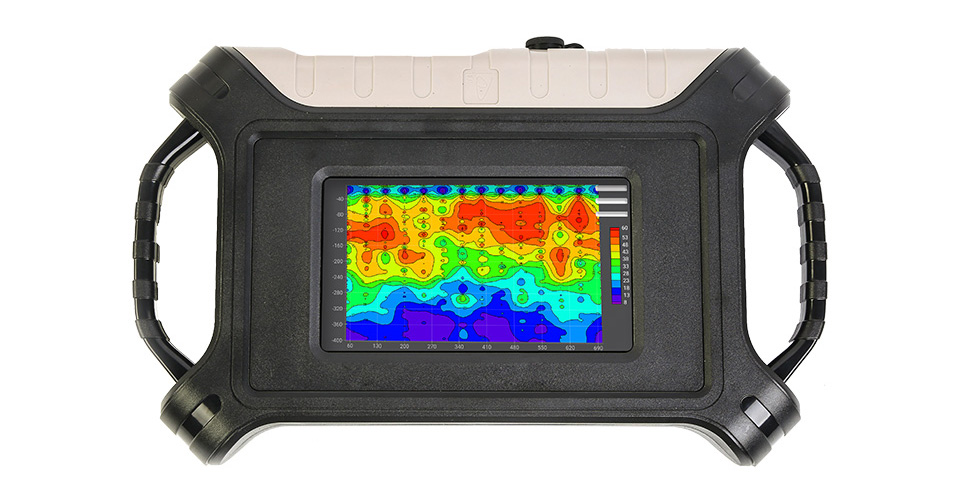

Model:
ADMT-20KG-X, ADMT-100KG-X
-
Features:
Built on 50+ years of R&D for reliable, accurate data. Fast 2D/3D imaging via mobile or tablet. High-performance wireless sensors enable direct concrete surface detection. Simple Android APP operation—3-6 times faster than traditional methods.
Automatic Imaging: 7-inch Android touchscreen delivers real-time intelligent 2D, 3D, and curve images.
Precise and Stable: Built on 50+ years of R&D for reliable, accurate, solid performance.
Multi-Device Synchronization: Seamless data access and processing across the instrument screen, smartphone, and PC—view, edit projects, generate images, and run AI analysis on any device.
Smart and Flexible: Optional electromagnetic probes support TT mode measurement; also compatible with wireless “Golden Rod” sensor.
R&D Since 1973
Stable Accurate
Free upgrading at the original price after purchasing within six months
The Single-Channel Cavity Detector utilizes natural electromagnetic fields as the working source to investigate subsurface electrical structures. By measuring electromagnetic responses across a wide frequency range at the surface, it exploits the principle of varying skin depths to reveal resistivity differences at different depths, accurately locating and characterizing underground cavities, disturbances, karst voids, and more.
The ADMT Series 3D Imaging Cavity Detector is a leading professional-grade geophysical instrument for 3D imaging in archaeology and hazard assessment. It detects variations in subsurface resistivity caused by natural field strength changes to precisely determine the position, size, and depth of cavities, disturbed soil, and dissolution features. Widely used for leak detection in landfills, pre-construction void surveys, and disaster prevention, it is highly favored by professional archaeological teams and cultural heritage institutions.

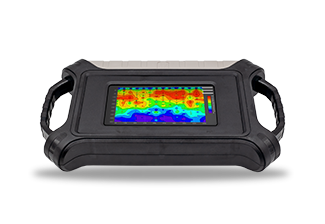

Real-time
Imaging
Accurate
& Stable
Multi-screen
InterComm
Simple
Operation
MEET YOUR VARIOUS NEEDS
Archaeological Exploration
Hazard and Disaster Assessment
Archaeological Exploration: Ideal for locating hidden cellars, tombs, karst caves, and other features in archaeological surveys.
Hazard and Disaster Assessment: Essential for detecting underground voids, goafs (mined-out areas), subsidence cavities, and related geological hazards.
SIX ADVANTAGES
TO HELP YOU EXPLORE WORRY-FREE

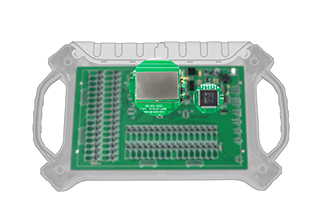

High precision and strong anti-interference
The core module of the instrument adopts an integrated package, with high precision and greatly enhanced anti-interference.
Equipped with a high-performance processor to run a variety of algorithms, the output is stable and accurate, ensuring the accuracy of the instrument in various environments.
Automatic drawing
After the measurement is completed, a 2D, 3D color map and a variety of curve graphs will be generated.
Simple operation with 7-inch touch screen.
Learn to operate in 5 minutes.
Depth adjustable, intelligent and flexible
Each product has a variety of adjustable depths, the number of channels can be set.
The two measurement modes of MN and TT can be switched, which is very intelligent and flexible.

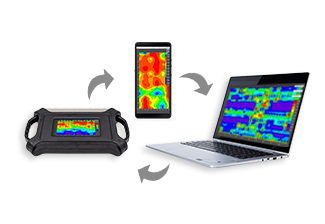

Multi-screen data sharing
Mobile phone, instrument, computer, remote terminal data sharing, only need to log in with the same account.
And support data sharing between multiple accounts.
Free upgrade, value-added purchase
The instrument includes a full set of APP software to support online free upgrades.
And since the purchase of 6 months to maintain the value of other products.
Lifetime technical support
Data processing and analysis, instrument maintenance online technical guidance and other services are all supported for life.

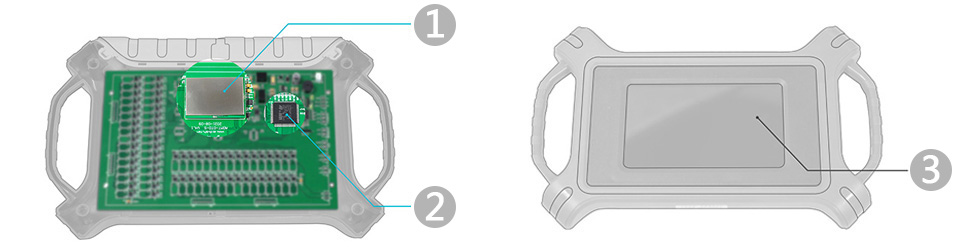

GOOD AT CORE AND BEAUTIFUL IN SHAPE
① Hi-Fi Signal Conditioning Amplifier Guaranteed signal accuracy
The analog circuit part of the front-end signal conditioning amplifier of the instrument adopts integrated packaging and shielding, which greatly enhances anti-interference, improves the signal input accuracy, and greatly improves the measurement accuracy of the instrument.
② High performance processor Run multiple algorithms
Adopt high-performance processor, run various algorithms, make the output stable and accurate, and ensure the measurement accuracy of the instrument
③ 7 inch touch screen operation
Real-time 2D/3D and curved images

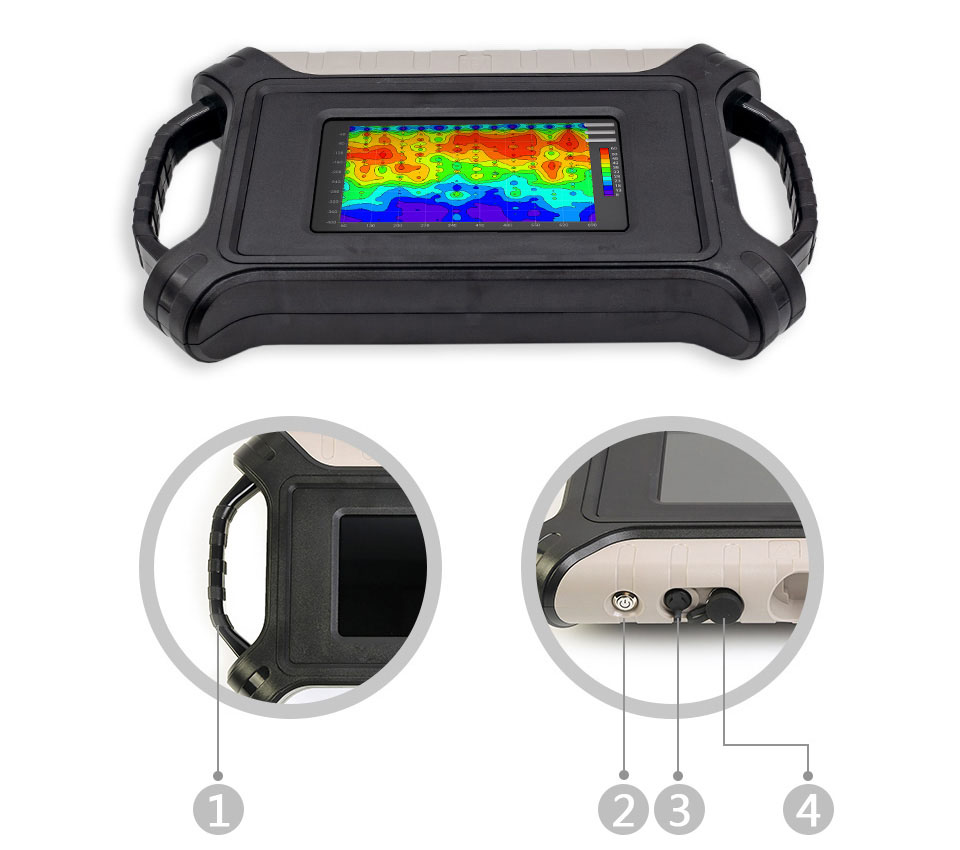

① Grip ② Switch ③ Charge ④ Multi-function interface

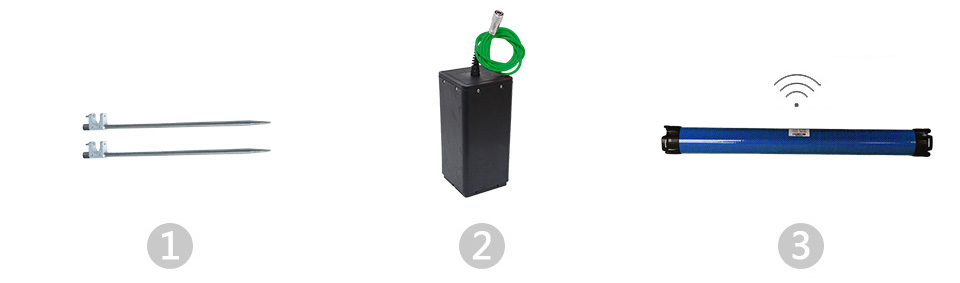

Accessories
① MN electrode measurement (standard)
Classic 10-meter cable connection, can be measured by plugging in the ground, it is suitable for two persons to measure.
② Wired connection probe (optional)
It is suitable for any ground such as cement, rock, ground breaking, etc. It can be measured by a single person.
③ Wireless connection golden hoop (optional)
Full wireless mode. It is suitable for any ground such as cement, rock, ground breaking, etc. It can be measured by a single person.
MODELS AND TECHNICAL PARAMETERS
| Parameter | ADMT-20KG-X | ADMT-100KG-X |
|---|---|---|
| Max Depth (m) | ≤20 | ≤100 |
| Channel Input | Single Channel MN | |
| Channel Options | 1 | |
| Adjustable Depth | 5/10/20m | 5/10/20/40/60/100m |
| Scan Interval | 5-20 | 5-100 |
| Connection | Serial port, WiFi, Bluetooth 4.0, USB (optional 4G) | |
| Display | 7-inch, IPS wide Angle, 178° visual touch screen | |
| OS | Android 13 | |
| CPU | RK3568 | |
| GPU | Mali G52 | |
| Features | Adjustable depth, real-time 2D/3D imaging, removable battery | |
| Meas. Mode | MN/TT | |
| Freq. Range (hz) | 100-8K | |
| Freq. Selection | Preset frequency selection and intelligent frequency selection, analog + data filtering, options of 1-16 times stackings | |
| Discrim. | 0.01mV±2% | |
| Acq. Time (s) | 40-3600 | |
| Battery | 800mA/H | |
| Main Unit Weight | 1.6kg | |
