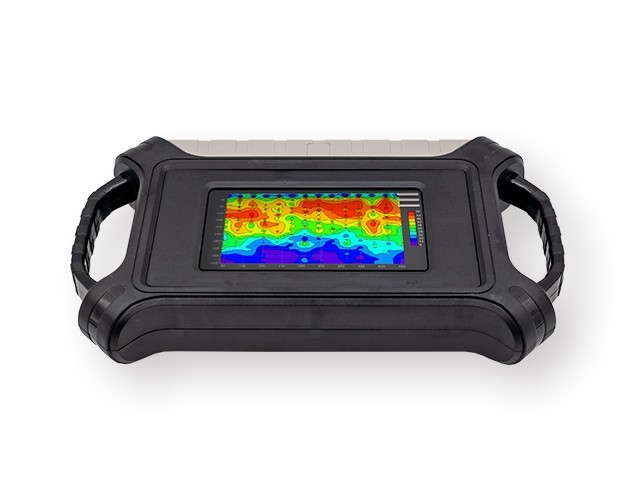

Single Channel MT Electromagnetic Geophysical Equipment
  • Model:
    ADMT-200AX, ADMT-500AX, ADMT-1200AX, ADMT-3000AX, ADMT-5000AX
  • Features:
    Wired connection to electromagnetic probes or Bluetooth connection to the Golden Band electromagnetic probe; 7" Android touch screen for real-time imaging.

    Automatic imaging.The 7" Android touch screen is intelligent in real time into 2D, 3D and curved images.

    Precise and stable.The disadvantages of natural electromagnetic field sources, which are inconsistent in size and change from time to time, are solved and the accuracy is greatly improved.

    Triple screen interoperability.The instrument screen, mobile phone screen and computer screen are interoperable.

    Intelligent and flexible.MN electrode and TT probe measurement can be switched, and wireless probe or water hunting golden hoop can be selected.



    ADMT series single channel MT electromagnetic method instrument is a basic MT electromagnetic method instrument for time-sharing measurement of MT method electric field and MT method electromagnetic field.

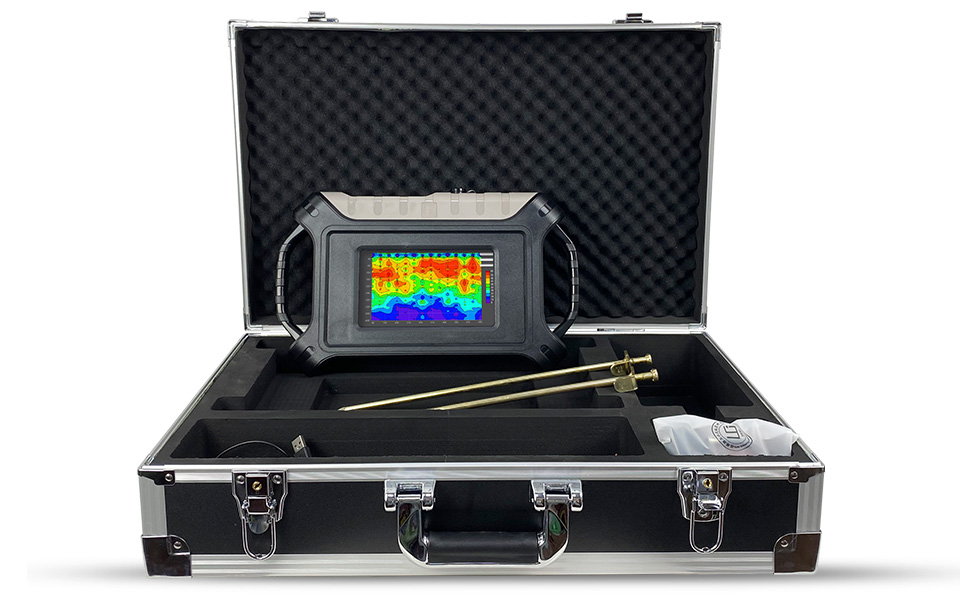

    The MT electromagnetic method and frequency sounding method are simplified for time-sharing measurement. The standard 7-inch IPS wide-angle touch screen can be used for real-time imaging, and data sharing on the instrument, mobile phone and computer PC.The device is  portable , high accurate,  intelligent and simple. Standard configuration is a detachable polymer battery, 20m MN measuring line, MN electrode and TT electromagnetic probe measuring mode.


    The field operation is very convenient and highly recognized by customers.


    It has been listed to obtain several invention patents (Patent No. ZL201310205318.9, ZL201110454869.X, ZL201320054153.5, ZL201320303919.9) and has been recognized as a high-tech achievement transformation project in Shanghai.


    Main uses:It is widely used for detailed and census exploration of all kinds of metallic and non-metallic ores, for detailed and census exploration of groundwater search, for environmental protection investigation, power design, engineering exploration, geothermal exploration, exploration of coal mining void areas, geological disaster investigation, etc.






    49 Years Research and Development


    Stable       Accurate



    Free upgrading at the original price after purchasing within six months

    ADMT series products use the earth's natural electromagnetic field as the working field source to study the electrical structure inside the earth. According to the principle that electromagnetic waves of different frequencies have different skin depths in the conductive medium, the earth's electromagnetic response sequence from high frequency to low frequency is measured on the surface of the earth. , to study the difference in electrical changes of underground geological bodies at different depths, and to determine the occurrence state of underground geological bodies

    Since the development of the short-wire D75 electrical method in 1973, we have been working hard. This high-density MT geophysical probe uses 16-channel simultaneous input measurement to obtain a stable field source, solves the problem of natural electric field changes at any time, and solves repeated measurement data. The shortcomings of different profiles, combined with light and efficient, precise and intelligent and advanced Internet of Things technology, are well received by new and old users.







    Real-time
    Imaging
    Accurate
    Stable
    Multi-screen
    InterComm
    Simultaneous
    Measurement


    Real-time
    Imaging


    Accurate
    & Stable


    Multi-screen
    InterComm


    Smart &
    flexible



    MEET YOUR VARIOUS NEEDS


    Engineering Investigation


    Mineral Exploration


    Water Source Survey


    Treasure Exploration


    Engineering Investigation: Underground cavity, coal mine goaf, dyke piping leak detection, engineering geophysical prospecting, etc.

    Mineral Exploration: Exploration for metallic and non-metallic minerals, geothermal hot springs, etc.

    Water Source Survey: Exploration for groundwater resources, geological structure stratification, etc

    Treasure Exploration: Exploration and survey for rare minerals such as jade, gems, ebony, crystals, etc


    CUSTOMER USE EFFECT

    Burma Maoqi open-pit mining exploration


    Instrument: using a high-density MT electrometer

    The gold deposit is located in Maoqi, Myanmar. The gold deposit in this area belongs to the quartz vein type gold deposit. The quartz vein generally shows a red high resistivity reaction on the survey map. The red high-resistance area on the survey map is intermittent, and the actual situation of the gold ore veins in this area is also not continuous. One section is good and the other is not good. The gold veins reflected by the measurement profile are the same as the actual mining rules.


    SEVEN ADVANTAGES
    TO HELP YOU EXPLORE WORRY-FREE

    High precision and strong anti-interference

    05.pngThe core module of the instrument adopts an integrated package, with high precision and greatly enhanced anti-interference.

    Equipped with a high-performance processor to run a variety of algorithms, the output is stable and accurate, ensuring the accuracy of the instrument in various environments.

    Automatic drawing

    06.pngAfter the measurement is completed, a 2D, 3D color map and a variety of curve graphs will be generated.

    Simple operation with 7-inch touch screen.

    Learn to operate in 5 minutes.

    Depth adjustable, intelligent and flexible

    03.jpgEach product has a variety of adjustable depths.

    The two measurement modes of MN and TT can be switched, which is very intelligent and flexible.

    Multi-screen data sharing

    08.pngMobile phone, instrument, computer, remote terminal data sharing, only need to log in with the same account.

    And support data sharing between multiple accounts.

    Free upgrade, value-added purchase

    09.pngThe instrument includes a full set of APP software to support online free upgrades.

    And since the purchase of 6 months to maintain the value of other products.

    Lifetime technical support

    10.pngData processing and analysis, instrument maintenance online technical guidance and other services are all supported for life.

    Patented product

    11.pngObtained multiple invention patents

    (Patent No.: ZL201310205318.9, ZL201110454869.X, ZL201320054153.5, ZL201320303919.9)


    GOOD AT CORE AND BEAUTIFUL IN SHAPE


    ① Hi-Fi Signal Conditioning Amplifier Guaranteed signal accuracy
    The analog circuit part of the front-end signal conditioning amplifier of the instrument adopts integrated packaging and shielding, which greatly enhances anti-interference, improves the signal input accuracy, and greatly improves the measurement accuracy of the instrument.

    ② High performance processor Run multiple algorithms
    Adopt high-performance processor, run various algorithms, make the output stable and accurate, and ensure the measurement accuracy of the instrument

    ③ 7 inch touch screen operation
    Real-time 2D/3D and curved images

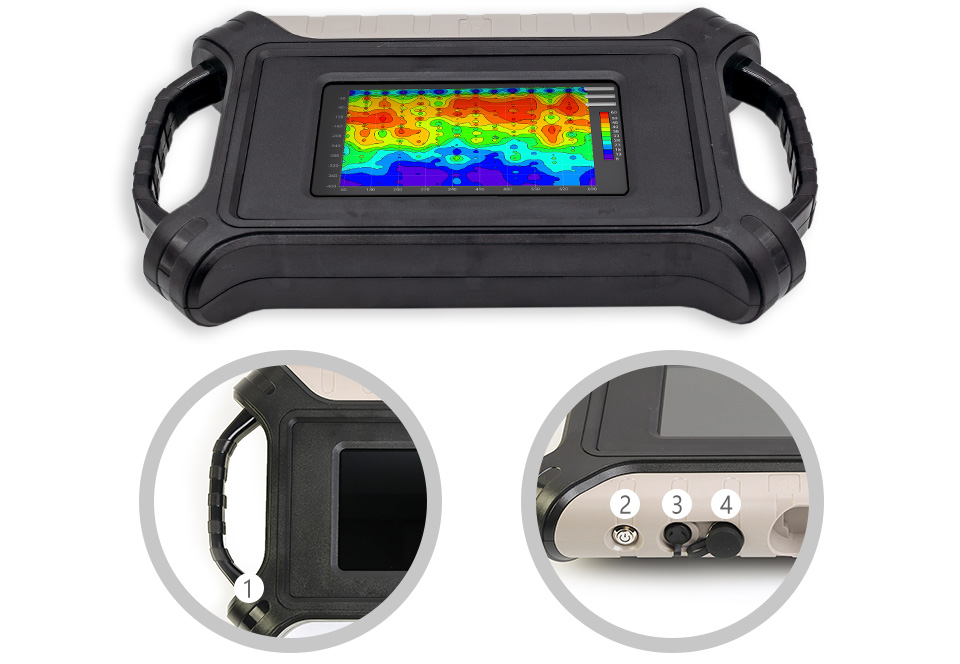

    ① Grip    ② Switch    ③ Charge    ④ Multi-function interface

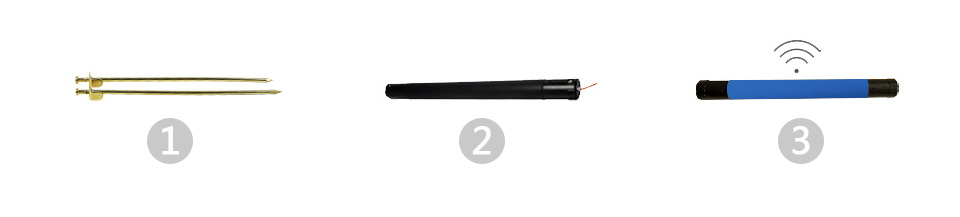

    Standard configuration


    ① MN electrode measurement (standard)
    Classic 20-meter cable connection, can be measured by plugging in the ground, it is suitable for two persons to measure.

    ② Wired connection probe (optional)
    It is suitable for any ground such as cement, rock, ground breaking, etc. It can be measured by a single person.

    ③ Wireless connection golden hoop (optional)
    Full wireless mode. It is suitable for any ground such as cement, rock, ground breaking, etc. It can be measured by a single person.





    MODELS AND TECHNICAL PARAMETERS

    ModelADMT-200AXADMT-500AXADMT-1200AXADMT-3000AXADMT-5000AX
    Max
    depth (m)
    ≤200≤500≤1200≤3000≤5000
    Channel
    input
    1 channel MN input
    Channel
    option
    1
    Adjustable
    depth
    5/10/20/40/60/100/ 200/300/500/800/ 1200/2000/3000/4000/5000m
    Layer
    division
    10-100
    ConnectionSerial port, WiFi, Bluetooth 4.0, USB
    Display7-inch, IPS wide Angle, 178° visual touch screen
    Operating
    system
    Android6.0.1, RAM 1GB, ROM 8GB (expandable 128GB)
    CPUARM Cortex-A7, 8-core CPU, 2.0Hz
    GPUOpenGL ES 2.0
    Main
    function
    Optional depth, real-time 2D/3D imaging, removable battery
    Measure
    model
    MN/TT
    Frequency
    range (hz)
    1-8K0.001-8K
    Frequency
    selective
    Preset frequency selection and intelligent frequency selection, analog + data filtering, 1-16 times stacking is optional
    Resolution0.01mV±2%0.01mV±1%
    Sampling
    time (s)
    100-360120-1500
    Battery900mA/H
    Weight2.8kg

    SERVING DOZENS OF COUNTRIES AROUND
    THE WORLD, WELL RECEIVED BY USERS


    PROFESSIONAL TEAM


    QUALIFICATION CERTIFICATE

    Certificates and Awards: CE, ISO,  China National High-tech Enterprise, China National Technical Invention Patent


    DEVELOPMENT HISTORY

    1973: Developed the domestic short-wire D75 electrical method
    1977: Developed an aerial proton magnetometer
    1981: Developed domestic resistivity DW83 electrical method
    1988: Developed a multi-functional high-power electric method
    2001: Developed the NEP series of natural electric field geophysical probes
    2005: Completed the "High-Density Electrical Method" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
    2011: Completed the "Controllable Source Geodetic Electromagnetic Instrument (CSAMT)" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
    2013: Received the support of the Innovation Fund of the Ministry of Science and Technology, and passed the Shanghai High-tech Achievement Transformation Certification
    2017: Developed mobile phone water-finding instrument and geophysical instrument, supporting two-dimensional and three-dimensional automatic mapping of Android system
    2018: Independent research and development of 16-channel series products to solve the problem of natural electric field source changes, simple, efficient and precise
    2021: Water-finding instrument, geophysical prospecting instrument, aerial geophysical prospecting, earthquake advanced prediction system, etc. will be developed for cloud platform big data automatic analysis function





    Two-year
    Warranty


    Lifetime
    After-sales


    Professional
    Advisors


    Free
    Upgrade
