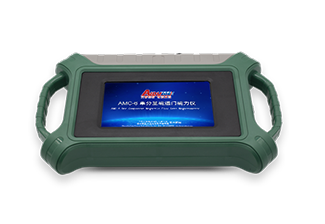

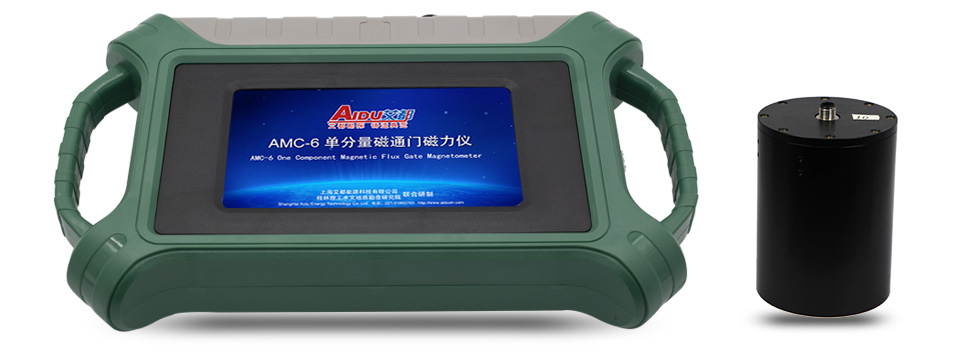

AMC-6 Single Component Fluxgate Magnetometer
  • Model:
    AMC-6
  • Features:
    The AMC-6 high-precision magnetic flux magnetometer probe cooperates with Shanghai Maritime Institute to use a more advanced high-permeability through a special heat treatment method and a high-precision manual winding method. The high-performance sensor

    1.Use advanced earthquake prediction and detecyion, geological disasters, archaeological excavations, metal pipelines,etc. application. It is widely used to find other iron ore and other iron ore such as magnetite and the detailed survey and general survey of mineral ore, reduce the investment risk of mine A, and improve the mining success rate and scientific.

    2.It is widely used in the exploration of underground roadways and tunnels.

    3.It is widely used in surveying applications such as advanced earthquake prediction and detection, geological disasters, archaeological excavation, and metal pipelines.



    49 Years Research and Development


    Stable       Accurate



    Free upgrading at the original price after purchasing within six months

    The AMC-6 fluxgate magnetometer is a masterpiece of cooperation between Shanghai Aidu and Shanghai Maritime University. It has a very high response ability to weak signal changes. It has the characteristics of high resolution, high precision, stable performance, and no temperature drift. It can be used for geomagnetic pulsation, iron ore exploration, magnetic exploration of ferromagnetic mixed deposits, magnetic survey mapping, cast iron pipeline detection, reinforced concrete pipeline detection, urban underground infrastructure pipeline detection and other applications. Make more accurate judgments on reserves, scope, and grade, and analyze and understand the direction of pipelines







    Real-time
    Imaging
    Accurate
    Stable
    Multi-screen
    InterComm
    Simultaneous
    Measurement


    Real-time
    Imaging


    Accurate
    & Stable


    Mobile
    Imaging


    Simple &
    efficient



    MEET YOUR VARIOUS NEEDS


    Iron Mineral Exploration


    Magnetic Mapping


    Archaeological Excavation


    Pipeline Inspection


    Iron Mineral Exploration: It is widely used for detailed investigation and general survey and exploration of other iron ores and metal ore such as magnetite, reducing the risk of mine investment, and improving the success rate and scientificity of mining

    Magnetic Mapping: Magnetic exploration, oil and gas exploration, fault location, earthquake precursor monitoring, volcano observation and other hazard geological surveys

    Archaeological Excavation: Exploration of groundwater resources, geological structure stratification, etc

    Pipeline Inspection: It is widely used in surveying applications such as advanced earthquake prediction and detection, geological disasters, archaeological excavations, and metal pipelines.



    SIX ADVANTAGES
    TO HELP YOU EXPLORE WORRY-FREE

    Simple operation

    01.png7 inch touch screen operation

    Learn to operate in 5 minutes

    Accurate and stable

    02.pngHigh precision, small steering difference, complex terrain, automatic vertical measurement of Z axis

    Mobile drawing

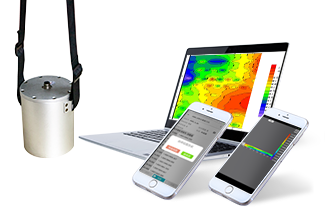

    03.pngDraw a cross-sectional color map on the mobile phone to determine the location

    Smart and efficient

    04.pngSilicone oil damping, free-falling vertical probe, stable measurement even on the ground, easy to operate. You can also wirelessly connect your mobile phone to draw two-dimensional and three-dimensional color pictures.

    Perfect after-sales

    10.pngReport by computer

    Expert online data analysis

    Patented product

    11.pngObtained multiple invention patents

    (Patent No.: ZL201310205318.9, ZL201110454869.X, ZL201320054153.5, ZL201320303919.9)


    BEAUTIFUL IN SHAPE

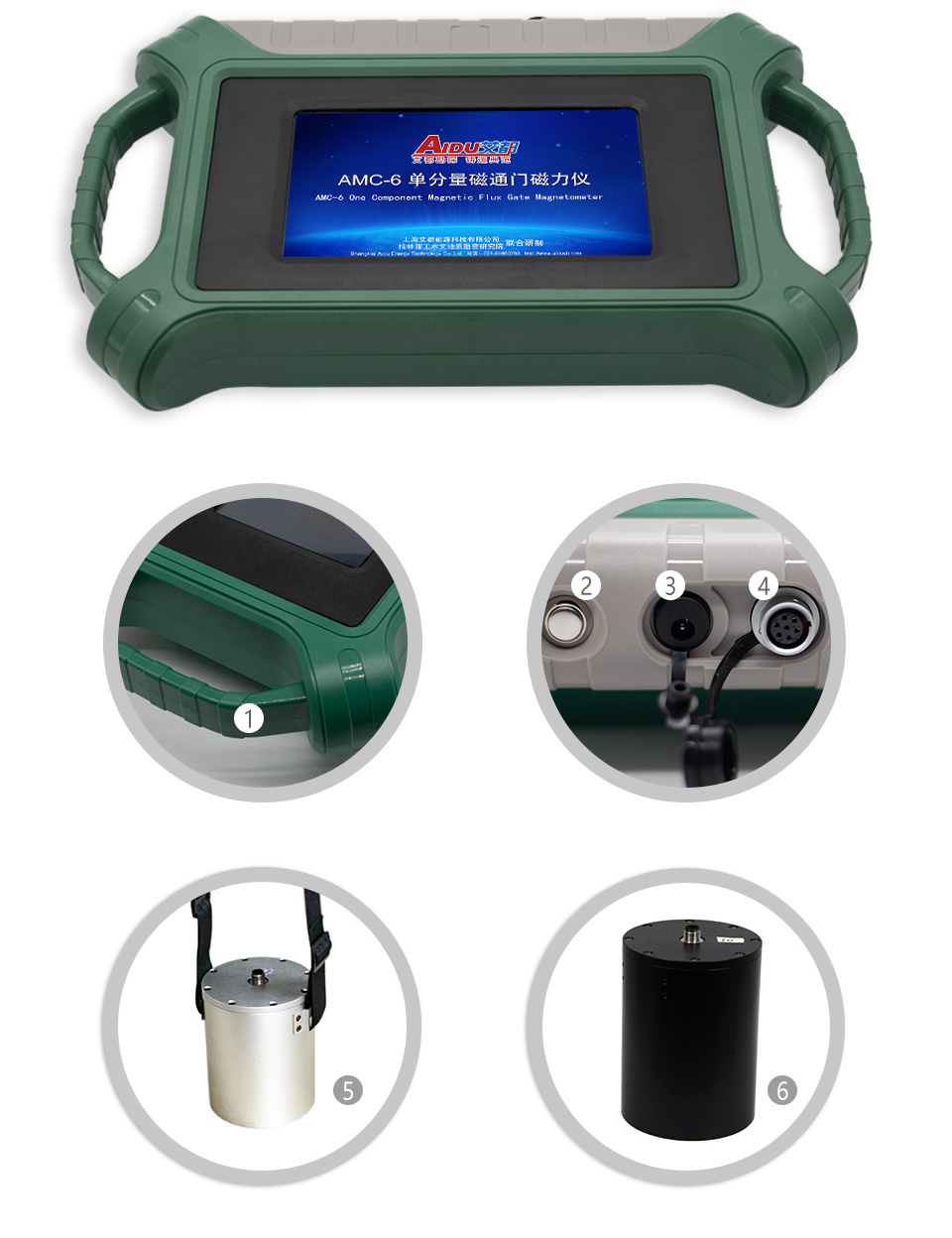

    ① Grip    ② Switch    ③ Charge    ④ Probe connection    ⑤ High performance probe    ⑥ Silicon oil damping probe



    MAIN MODELS
    AND TECHNICAL PARAMETERS

    ParameterAMC-6
    Detection axisVertical component of geomagnetic field
    Range±100000nT
    Resolution0.1-1nT
    Precision<±0.5% (full scale)
    Poor steeringBasic model ±50nT (Professional model ±10nT)
    Max angular deviation15° (silicone oil damping probe)
    Data storage16G
    Data collection
    frequency
    1 times per second (automatic and manual)
    ConnectionBluetooth, serial port
    Display7-inch high-brightness touch screen, difference or absolute value display data and curve, can wirelessly connect to mobile phone to display color pictures
    Power consumption160mA~500mA
    Power supplyDC7.4V 5200mA lithium battery
    Working environment temperature-10℃~+50℃



    SERVING DOZENS OF COUNTRIES AROUND
    THE WORLD, WELL RECEIVED BY USERS


    PROFESSIONAL TEAM


    QUALIFICATION CERTIFICATE

    Certificates and Awards: CE, ISO,  China National High-tech Enterprise, China National Technical Invention Patent


    DEVELOPMENT HISTORY

    1973: Developed the domestic short-wire D75 electrical method
    1977: Developed an aerial proton magnetometer
    1981: Developed domestic resistivity DW83 electrical method
    1988: Developed a multi-functional high-power electric method
    2001: Developed the NEP series of natural electric field geophysical probes
    2005: Completed the "High-Density Electrical Method" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
    2011: Completed the "Controllable Source Geodetic Electromagnetic Instrument (CSAMT)" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
    2013: Received the support of the Innovation Fund of the Ministry of Science and Technology, and passed the Shanghai High-tech Achievement Transformation Certification
    2017: Developed mobile phone water-finding instrument and geophysical instrument, supporting two-dimensional and three-dimensional automatic mapping of Android system
    2018: Independent research and development of 16-channel series products to solve the problem of natural electric field source changes, simple, efficient and precise
    2021: Water-finding instrument, geophysical prospecting instrument, aerial geophysical prospecting, earthquake advanced prediction system, etc. will be developed for cloud platform big data automatic analysis function





    Two-year
    Warranty


    Lifetime
    After-sales


    Professional
    Advisors


    Free
    Upgrade
