Model:
ADMT-3H, ADMT-3HT2, ADMT-3HT3, ADMT-8HT2, ADMT-8HT3
-
Features:
AIDU's ground water exploration Golden Rod introduces segmented and multi-density scanning, data processing, 2D/3D/Slice imaging, AI insights, and offline operation, enhancing user experience and water exploration's profitability.
Ground Water Exploration Marvel "Golden Rod" Upgraded and Enhanced
(New Generation 2024)

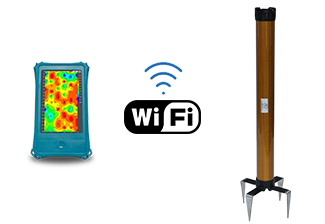

The "Golden Rod", a ground water detector innovatively introduced by AIDU, represents a perfect fusion of the main instrument and electromagnetic sensors . It completely eliminates the traditional constraints of pulling cables and grounding, enabling fully wireless operation. This makes it adaptable to any complex terrain and allows a single person to efficiently complete ground water exploration tasks. Since its debut in 2016, this revolutionary product has quickly gained widespread acclaim in domestic and international hydrogeological exploration, geothermal surveying, and engineering fields due to its "fully wireless, precise, efficient, and easy-to-use" features. It has garnered over 20,000 loyal users worldwide and has been featured multiple times on CCTV News, becoming a star product in the industry.
Now, the Golden Rod has undergone a major upgrade. The new generation of the product retains the original advantages while incorporating advanced technologies that further enhance ground water exploration accuracy and significantly optimize user experience. These upgrades not only provide more reliable results but also help users significantly improve work efficiency and economic benefits, continuing to lead the industry into a new era of intelligence and efficiency.
Superior
Accuracy
Segmented
Scanning
Scan Density
Options
AI
Analysis
Trusted by Millions, CCTV Recommended
CCTV-1 "Voice" on March 23rd, 2024
Water Finding Marvel "Golden Rod" assisted in the "Three North" Shelterbelt Project
CCTV-13 "Morning News" on November 29th, 2023
It showcased how the "Golden Rod" automatically generates geological images to support farmland construction in Laizhou, Shandong Province
PURPOSES
Primarily Used for Locating Groundwater Position, Depth, and Flow Direction Prior to Drilling
TEN ADVANTAGES
TO HELP YOU EXPLORE WORRY-FREE
Upgraded Accuracy
The new Golden Rod ground water detector boasts a meticulously designed multi-stage signal conditioning system, achieving unprecedented measurement accuracy and reliability, underpinning your water exploration endeavors.
Enhanced Stability

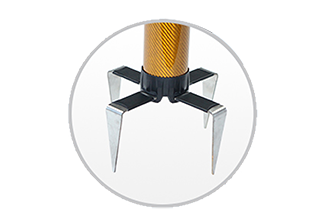

The four-electrode design effectively enhances stability during measurements, ensuring accurate and reliable data

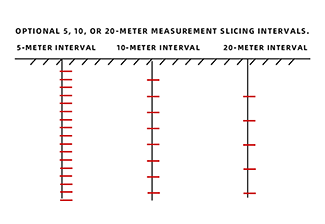

Scan Density Options
This device offers three scanning density options: 5 meters per layer, 10 meters per layer, and 20 meters per layer. The smaller the interval, the higher the accuracy, though it also increases the measurement time. Users can choose according to their needs: if speed is a priority, select 20 meters per layer; if high precision is required, select 5 meters per layer.
Segmented Measurement
Segmented measurement is an innovative feature allowing users to measure specific depth segments underground. For example, in plateau regions with thick strata, users searching for water resources can begin measurements at 300 meters below the surface, rather than starting at the surface. This significantly reduces operation time. Additionally, for users requiring higher accuracy, a scanning density of 5 meters per layer is available. This approach ensures both speed and precision, making exploration more flexible and efficient, and ultimately catering to diverse individual needs.
Auto Imaging
Equipped with the Aidu Water app independently developed by AIDU, it can automatically generate 2D/3D/slice images, making analysis more intuitive and allowing for easy location of ground waters
On-Device Data Processing
Without the need for a desktop computer, data denoising, smoothing, and inversion can be easily performed directly on the device. This improves data accuracy and offers significant convenience for geological exploration and water detection
24/7 AI-Powered Auto Analysis
Enjoy round-the-clock, free image analysis support. Our AI continuously learns from user feedback, evolving its accuracy with each use, ensuring increasingly precise drilling decisions
Offline Measurement
Newly introduced offline measurement capability not only enhances user experience but also effectively mitigates the impact of external factors like electromagnetic interference on real-time measurements, resulting in more accurate and reliable outcomes
WiFi Networking
The shift to WiFi connectivity has significantly enhanced data transmission efficiency

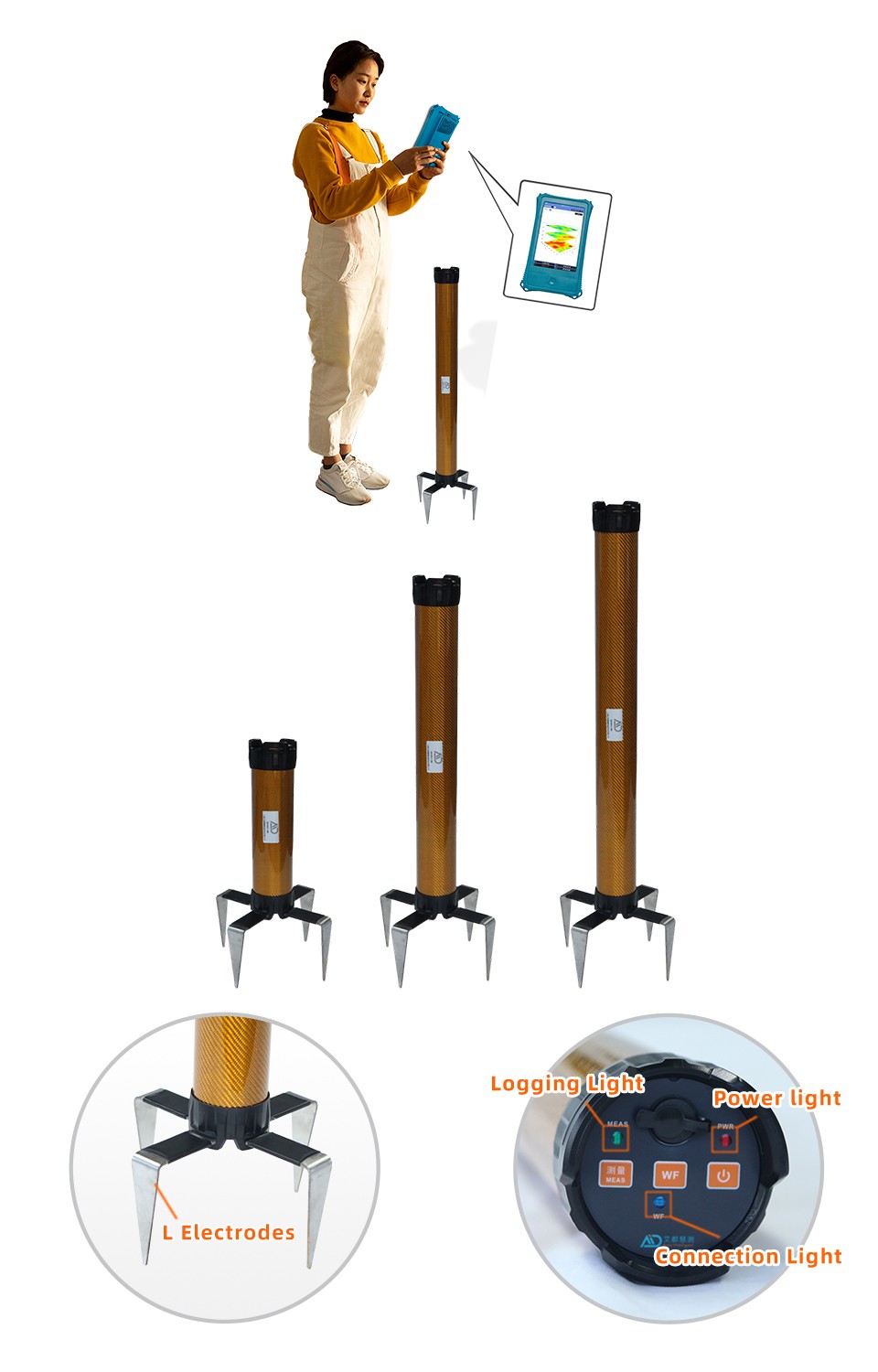

Wireless Operation
The new generation product inherits the advantages of its predecessor, being completely wireless and easy to operate, allowing for single-person use. It can be used for measurements whether placed on the ground, stood upright, or carried on the back, without being limited by ground conditions. Whether in rugged mountainous terrain or complex urban environments, it can handle the task effectively

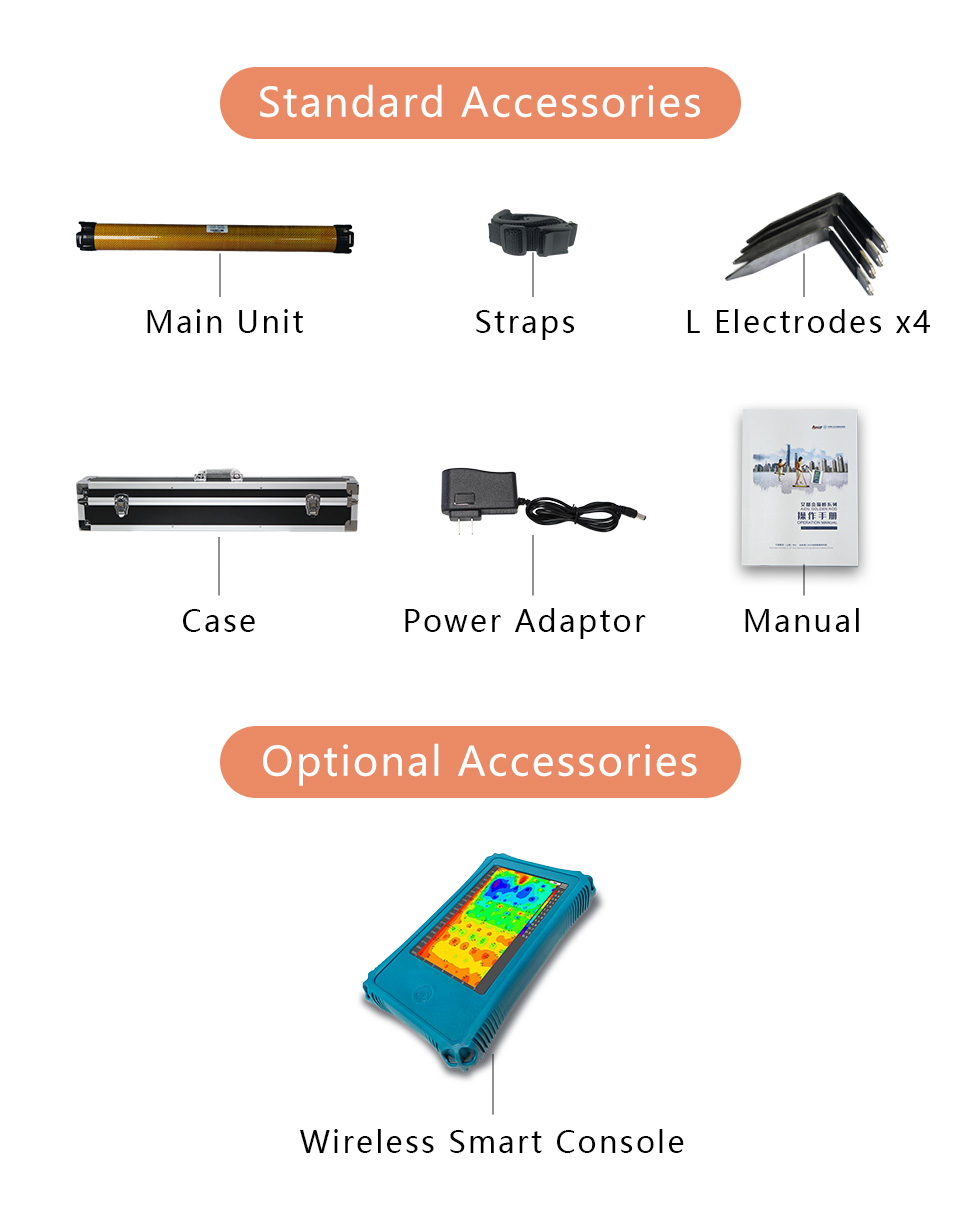

Full Kit
TECHNICAL PARAMETERS
| Versions | ADMT-3H | ADMT-3HT2 | ADMT-3HT3 | ADMT-8HT2 | ADMT-8HT3 |
|---|---|---|---|---|---|
| Max Depth (m) | 300 | 800 | |||
| Scan Interval | 5/10/20(m) | ||||
| Battery | 7.4V 2600mAH lithium battery, Power consumption approx. 140mA | ||||
| Connection | WIFI | ||||
| MN Electrodes | Four L-shaped alloy electrodes, each with a size of 100*95*30mm | ||||
| Core Features | selectable depth sections, variety in scan interval options, auto 2D/3D imaging, AI expert interpretation of image, on/offline operation | ||||
| TT Coil（mm/w） | - | 300/4 | 300/4 | 450/8 | 550/8 |
| TT Iron Core（KmH/m） | - | 80 | 100 | 100 | 120 |
| Ground Conditions | soft ground only | all grounds | |||
| Freq. Range (hz) | 1-8K | ||||
| Sensing Mode | MN | MN/TT | |||
| Discrim. | 0.1mV±5% | 0.01mV±1% | |||
| Acquisition Time (s) | 14-420 | 14-420 | 14-700 | 14-420 | 14-700 |
| Main Unit Weight (kg) | 0.8 | 1.9 | 2.6 | ||
| Main Unit Size (mm) | 340*71 | 650*71 | 790*71 | ||
SERVING DOZENS OF COUNTRIES AROUND
THE WORLD, WELL RECEIVED BY USERS
PROFESSIONAL SERVICE TEAM
QUALIFICATION CERTIFICATE
Certificates and Awards: CE, ISO, China National High-tech Enterprise, China National Technical Invention Patent
DEVELOPMENT HISTORY
1973: Developed the domestic short-wire D75 electrical method
1977: Developed an aerial proton magnetometer
1981: Developed domestic resistivity DW83 electrical method
1988: Developed a multi-functional high-power electric method
2001: Developed the NEP series of natural electric field geophysical probes
2005: Completed the "High-Density Electrical Method" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
2011: Completed the "Controllable Source Geodetic Electromagnetic Instrument (CSAMT)" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
2013: Received the support of the Innovation Fund of the Ministry of Science and Technology, and passed the Shanghai High-tech Achievement Transformation Certification
2017: Developed mobile phone water-finding instrument and geophysical instrument, supporting two-dimensional and three-dimensional automatic mapping of Android system
2018: Independent research and development of 16-channel series products to solve the problem of natural electric field source changes, simple, efficient and precise
2021: Water-finding instrument, geophysical prospecting instrument, aerial geophysical prospecting, earthquake advanced prediction system, etc. will be developed for cloud platform big data automatic analysis function
