Model:
ADZN300, ADZN600, ADZN1200, ADZN3000
-
Features:
1-60 channel integrated Intelligent High-density Groundwater Detector with AI analysis, automatic imaging, real-time multi-terminal data sharing, auto channel recognition, multi-function aviation connectors, accurate multi-channel measurement
Single unit supports 1-60 channels with a complete built-in intelligent system, capable of detecting both shallow and deep groundwater sources. Maximum exploration depth reaches 3000 meters, with ultra-fast precise measurement in as little as 13 seconds.
Intelligent and Efficient
Automatic imaging and AI-powered image analysis for quick, insightful results.
Flexible Operation
Supports both MN (electrode) and TT (magnetic sensor) modes, adapting to diverse field conditions.
Precise and Customizable
Freely customize target depth and precision levels to balance survey speed and accuracy. Automatic channel recognition with cascade expansion support up to 60 channels.
Intelligent High-density Groundwater Detector
R&D Since 1973
6-Month Trade-Up Guarantee
The Intelligent High-density Groundwater Detector integrates 1-60 channels in a single unit, featuring real-time data acquisition, processing, imaging, AI analysis, and seamless multi-terminal data sharing via cloud. Equipped with a 10.1-inch high-definition Android touchscreen, it offers automatic channel recognition and versatile specialized aviation connector interfaces.
Multi-channel simultaneous measurement overcomes the limitations of traditional MT methods, providing a stable field source and breaking through conventional depth constraints, achieving a maximum exploration depth of up to 3000 meters.
Applications
SIX ADVANTAGES TO HELP YOU EXPLORE WORRY-FREE

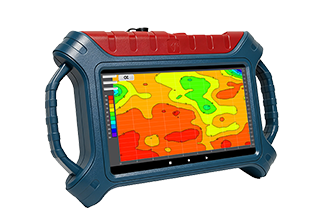

Innovation for Reliable Data
Adopts multi-channel synchronous measurement technology to solve the instability pain points of traditional MT field sources. Core analog-digital integrated packaging combined with a high-performance processor ensures stable and accurate data output even in the most challenging environments.
Automatic Imaging – Get Started in 5 Minutes
Upon completion of measurement, it automatically generates real-time 2D, 3D, and curve images. The intuitive interface is easy to master – even beginners can produce results immediately.
AI Intelligent Analysis
Achieves full-process automation, significantly reducing operational difficulty and interpretation barriers for users.

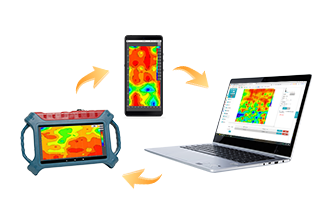

Cross-Device Synchronization for Seamless Workflow
Data can be accessed, processed, and analyzed on the instrument’s large screen, mobile APP, or PC—enabling smooth collaboration from field surveys to office review.

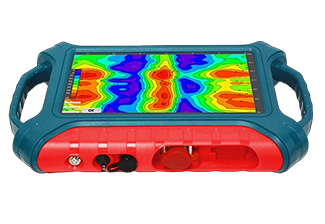

Rugged and Reliable Design
Features high-performance heat dissipation, specialized industrial-grade aviation connectors, and universal charging solutions, ensuring long-term stable operation in harsh field conditions.
Lifetime Technical Support
Professional support team provides lifelong technical guidance – from data processing to equipment maintenance, AIDU is always available to assist.

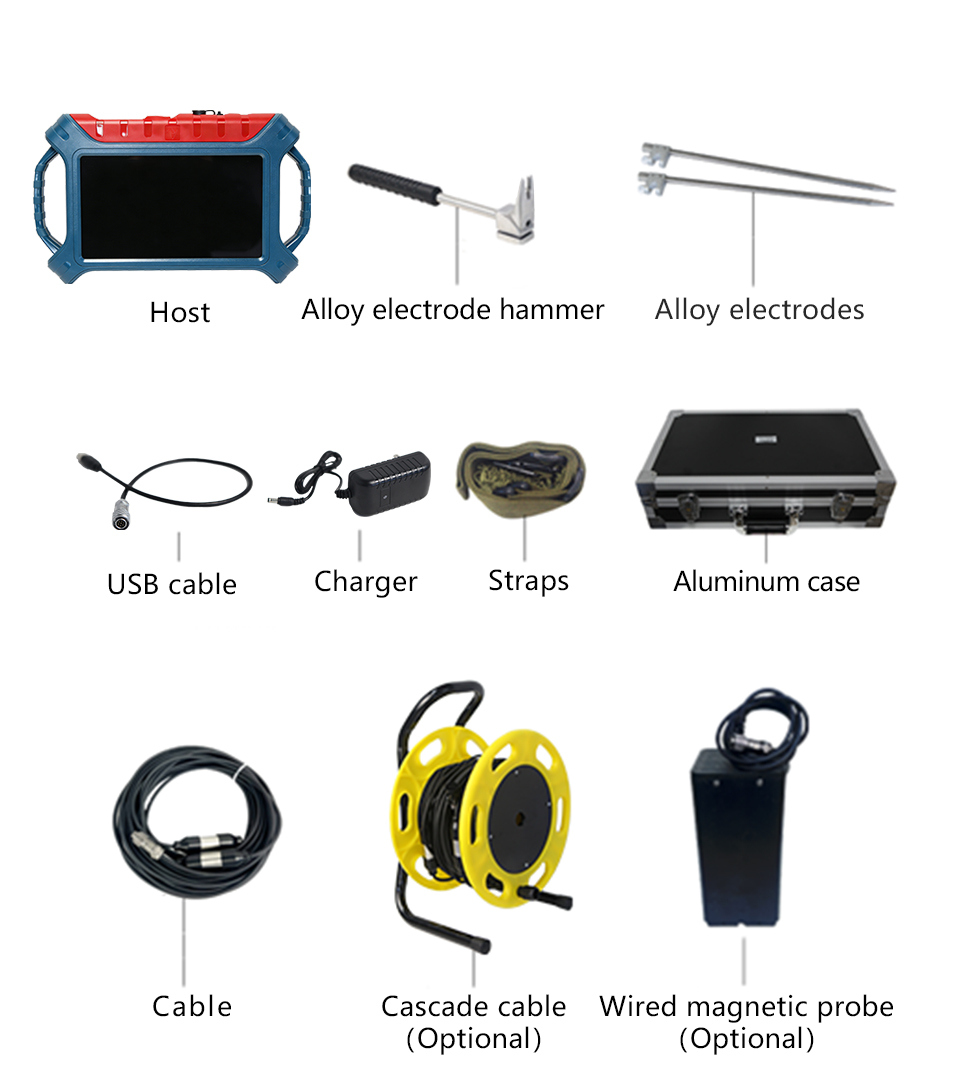

Full Kit
Product design, packaging, or accessories are subject to change due to ongoing improvements. For the most up-to-date information, please contact our service team.
TECHNICAL PARAMETERS
| Versions | ADZN300 | ADZN600 | ADZN1200 | ADZN3000 |
|---|---|---|---|---|
| Max Depth (m) | ≤300 | ≤600 | ≤1200 | ≤3000 |
| Scan Interval | 10 M | |||
| Channel Options | One device for 1-60 channels, standard with single channel (MN), optional MN channel extension and TT sensor | |||
| Meas. Mode | MN/TT | |||
| Freq. Range (hz) | 0.1-6500 HZ | |||
| Filtering | FFT Smart | |||
| Discrim. | 0.01mV±2% | |||
| Acq. Time (s) | 15s | |||
| Connection | 19-pin aviation socket (compatible with MN cables and TT sensors), 7-pin aviation socket (charging port / USB transmission integrated interface), wifi 5, bluetooth 4.2 | |||
| Display | 10.1" IPS high brightness touch screen | |||
| Resolution | 1024*600 | |||
| OS | Android 13 | |||
| CPU | RK3568 | |||
| GPU | Mali G52 | |||
| RAM | LDDR4/4GB | |||
| Storage | 32 GB | |||
| Core Features | Auto analysis, free software upgrade, one device for all channels, segmented depth survey, real-time curve, color contour mapping | |||
| Other Features | GNSS, optional 4G connection | |||
| Battery | 6000mAh | |||
| Main Device Size | 35.3cm*21.6cm*7.6cm | |||
Customer Cases
Product: ADZN600

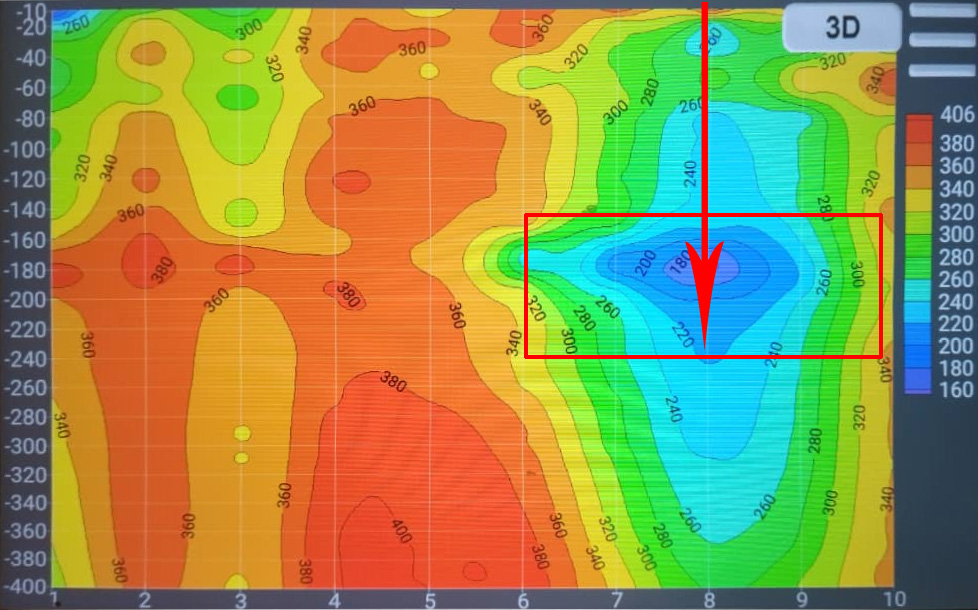

Image Interpretation:The survey area receives abundant precipitation and is dominated by karst fissure water, with nearby wells typically around 200 meters deep. Measurements show that survey points 1–6 exhibit red high-resistivity zones from 10–400 m depth, interpreted as dense, hard rock layers with poorly developed fractures and no distinct aquifer characteristics.
In contrast, points 7–9 display low-resistivity zones between 20–360 m, with the lowest resistivity occurring at 140–240 m. Combined with available data, this low-resistivity zone is likely a limestone karst aquifer with dissolution cavities 40–100 m high; however, it could also represent clay layers without significant water content. The client ultimately selected point 8 for drilling, anticipating major water inflow around 200 m depth.
Actual Drilling Results: During drilling, water was first encountered at 120 m depth. As drilling continued, water yield increased significantly at 160 m. After pumping tests, the well's output fully met the client's water requirements. The survey results closely matched the actual outcome.
Trusted by Millions, CCTV Recommended
SERVING THE WORLD
PROFESSIONAL SERVICE TEAM
QUALIFICATION CERTIFICATE
Certificates and Awards: CE, ISO, China National High-tech Enterprise, China National Technical Invention Patent
R&D Since 1973
1973: Developed the domestic short-wire D75 electrical method
1977: Developed an aerial proton
magnetometer
1981: Developed domestic resistivity DW83 electrical method
1988: Developed a
multi-functional high-power electric method
2001: Developed the NEP series of natural electric field
geophysical probes
2005: Completed the "High-Density Electrical Method" project commissioned
by the Institute of Geology and Geophysics, Chinese Academy of Sciences
2011: Completed the
"Controllable Source Geodetic Electromagnetic Instrument (CSAMT)" project commissioned by the
Institute of Geology and Geophysics, Chinese Academy of Sciences
2013: Received the support of the
Innovation Fund of the Ministry of Science and Technology, and passed the Shanghai High-tech Achievement
Transformation Certification
2017: Developed mobile phone water-finding instrument and geophysical
instrument, supporting two-dimensional and three-dimensional automatic mapping of Android system
2018:
Independent research and development of 16-channel series products to solve the problem of natural electric
field source changes, simple, efficient and precise
2021: Water-finding instrument, geophysical
prospecting instrument, aerial geophysical prospecting, earthquake advanced prediction system, etc. will be
developed for cloud platform big data automatic analysis function
2022: The company was renamed
Shanghai Aidu Intelligent Detection Technology Co. Ltd, and expanded its business operations
2023:
Launched AI automatic analysis functionality, ushering geological exploration into a new era of
intelligence. Introduced speedy water exploration instruments, magnetotelluric instruments, and
high-precision three-component magnetometers
2024: Released an online monitoring system supporting ERT,
bipole electrical, magnetic, and other geophysical data acquisition, with integrated data fusion and
processing capabilities for geological hazard monitoring and prevention
2025: Released UAV magnetic
survey and unmanned boat electrical survey systems with automated acquisition, rapid imaging, cloud-based
inversion processing capabilities
