Model:
ZN50P, ZN150P, ZN300P, ZN500P, ZN1000P, ZN2000P, ZN3000P, ZN5000P
-
Features:
High-speed sampling & advanced intelligence. Single-channel base, scalable via cascade cables to 12/24/36/48/60 channels for high-density, deep (up to 5000m) acquisition—ideal for complex geophysical exploration.
Built-in comprehensive electrical method processing: automatic data handling, imaging, and AI analysis—all in one streamlined workflow to shorten exploration cycles and boost efficiency.
Multi-Terminal Data Sharing
Collected data uploads to the cloud for seamless access. Perform processing, imaging, and AI analysis anytime on mobile APP or PC, enabling rapid anomaly identification and informed decision-making.
Smart Channel Recognition
Automatically detects connected channel count when adding cascade cables—no manual setup required, simplifying operation and enhancing usability.

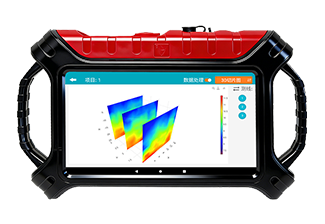

Smart Multi-Functional Electrical Method Instrument
R&D Since 1973
6-Month Trade-Up Guarantee

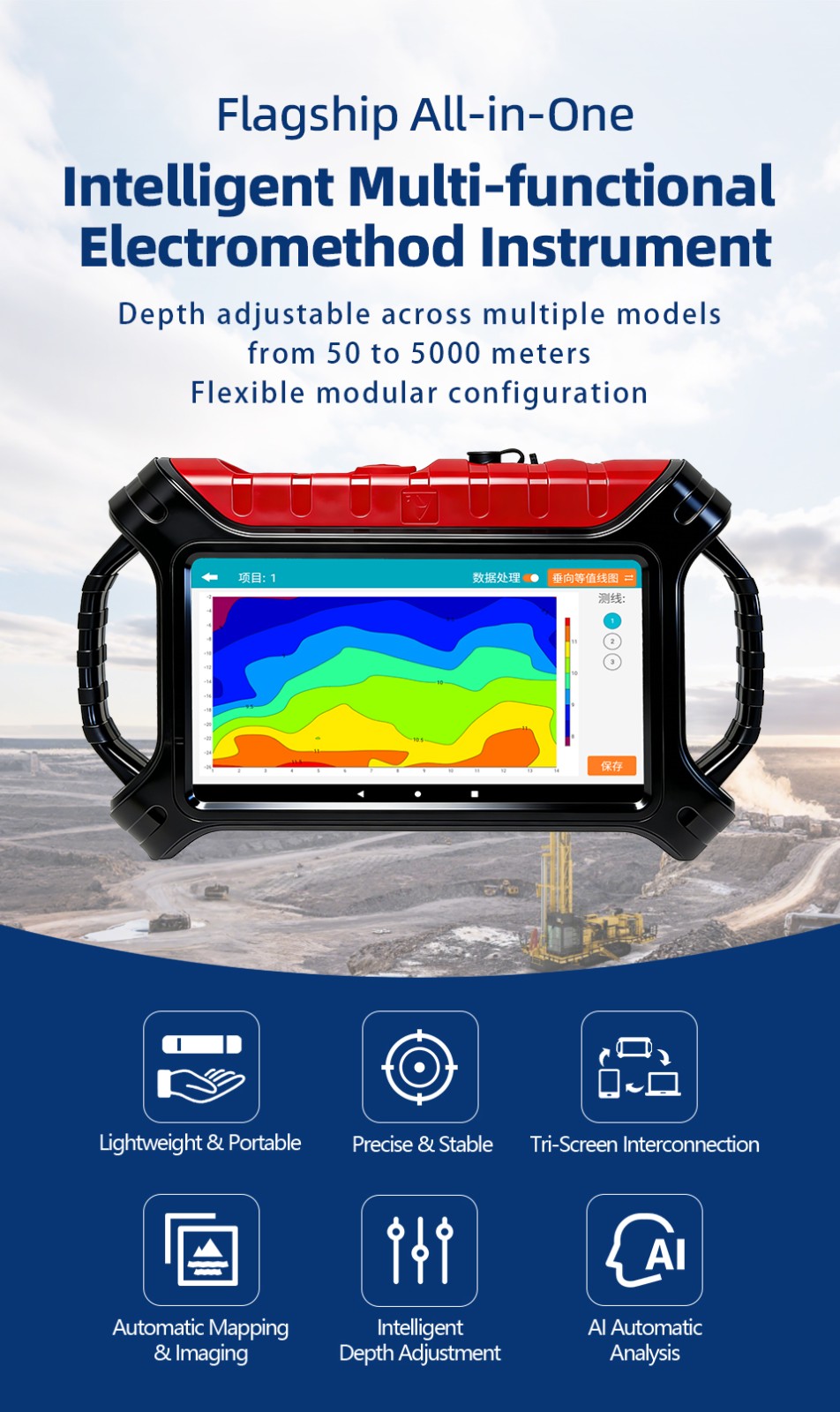

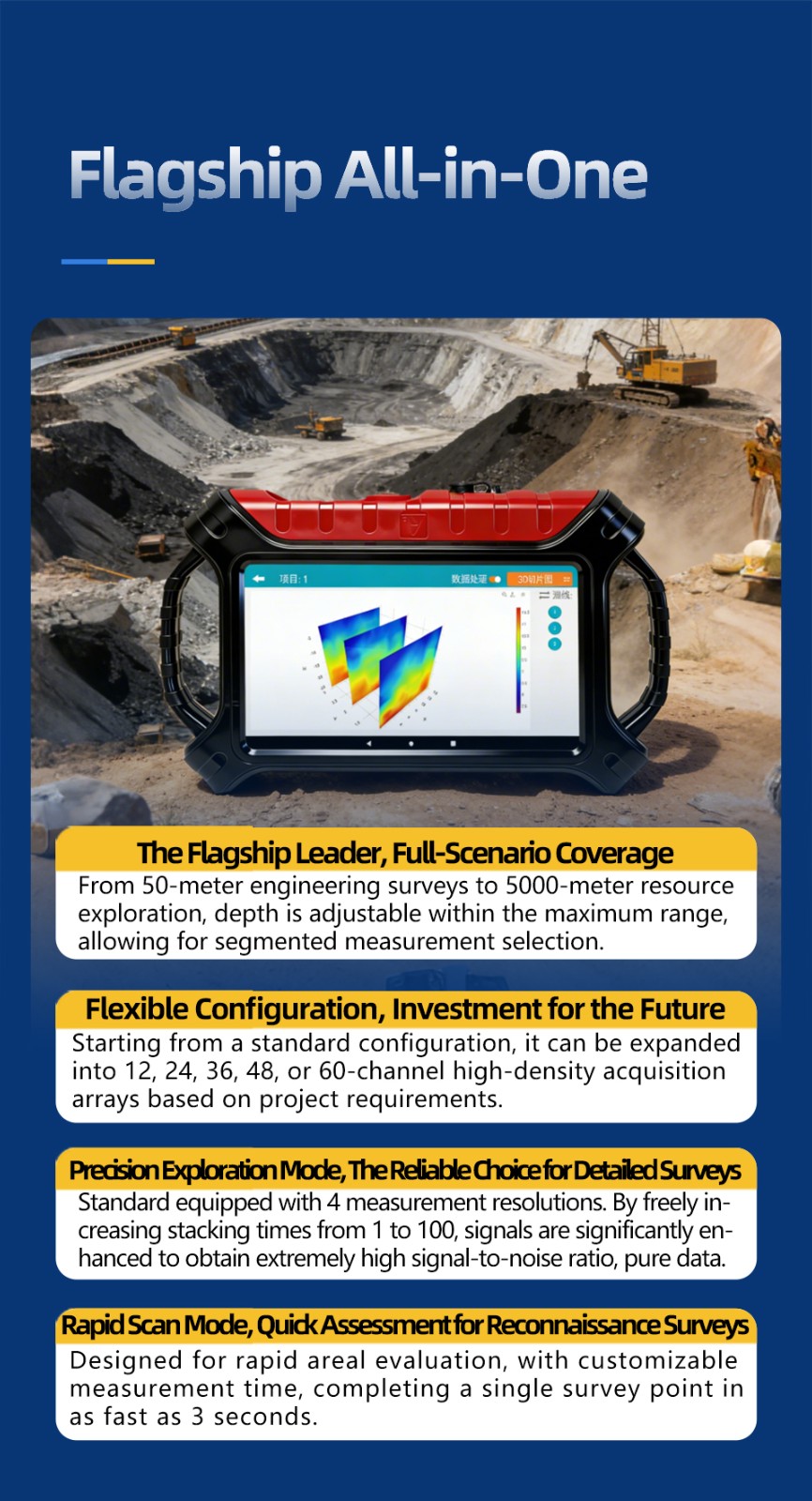

The Smart Multi-Functional Electrical Method Instrument is an innovative powerhouse in electrical geophysical exploration. Starting as a single-channel unit, it easily scales to 12/24/36/48/60 channels via cascade cables for high-density acquisition. It supports customizable depth ranges from 50–5000 meters (with free segmentation), meeting diverse needs in groundwater detection, mineral exploration, environmental hazard assessment, and engineering geology surveys.
The instrument features comprehensive built-in processing tools, including automatic data handling, imaging, and AI analysis. Data seamlessly syncs with mobile APP and PC web platforms, allowing users to process, visualize, and interpret results on-site or remotely.
Its breakthrough multi-channel simultaneous measurement technology stabilizes natural field sources, overcomes traditional MT variability, ensures excellent repeatability, and delivers high-density big data—pushing maximum exploration depth to 5000 meters.
MEET YOUR VARIOUS NEEDS
Engineering Investigation
Mineral Exploration
Water Source Survey
Environmental Census
Engineering Investigation: Underground cavity, coal mine goaf, dyke piping leak detection, engineering geophysical prospecting, etc.
Mineral Exploration: Exploration for metallic and non-metallic minerals, geothermal hot springs, etc.
Water Source Survey: Exploration for groundwater resources, geological structure stratification, etc
Environmental Census: Environmental protection surveys, leak detection of waste landfills, geological disaster surveys, etc
SIX ADVANTAGES TO HELP YOU EXPLORE WORRY-FREE
Innovation for Reliable Data
Adopts multi-channel synchronous measurement technology to solve the instability pain points of traditional MT field sources. Core analog-digital integrated packaging combined with a high-performance processor ensures stable and accurate data output even in the most challenging environments.

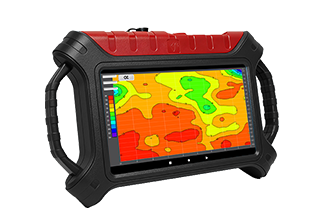

Automatic Imaging – Get Started in 5 Minutes
Upon completion of measurement, it automatically generates real-time 2D, 3D, and curve images. The intuitive interface is easy to master – even beginners can produce results immediately.
AI Intelligent Analysis
Achieves full-process automation, significantly reducing operational difficulty and interpretation barriers for users.

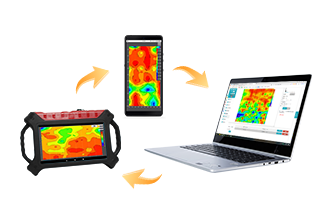

Cross-Device Synchronization for Seamless Workflow
Data can be accessed, processed, and analyzed on the instrument’s large screen, mobile APP, or PC—enabling smooth collaboration from field surveys to office review.

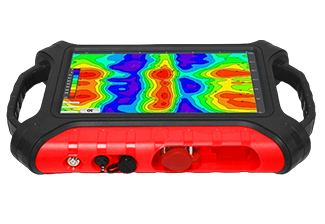

Rugged and Reliable Design
Features high-performance heat dissipation, specialized industrial-grade aviation connectors, and universal charging solutions, ensuring long-term stable operation in harsh field conditions.
Lifetime Technical Support
Professional support team provides lifelong technical guidance – from data processing to equipment maintenance, AIDU is always available to assist.

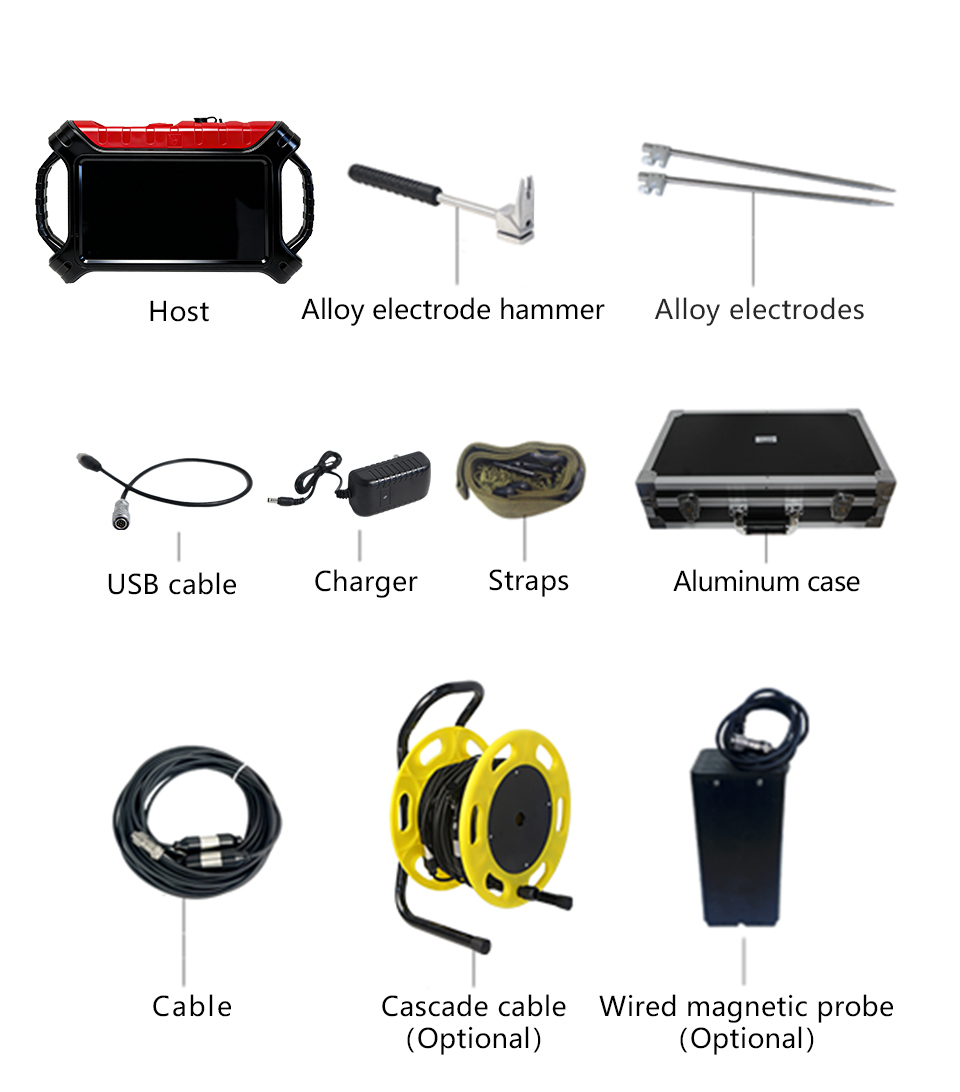

Full Kit
Product design, packaging, or accessories are subject to change due to ongoing improvements. For the most up-to-date information, please contact our service team.
TECHNICAL PARAMETERS
| Versions | ZN50P | ZN150P | ZN300P | ZN500P | ZN1000P | ZN2000P | ZN3000P | ZN5000P |
|---|---|---|---|---|---|---|---|---|
| Max Depth (m) | ≤50 | ≤150 | ≤300 | ≤500 | ≤1000 | ≤2000 | ≤3000 | ≤5000 |
| Scan Interval | 5 M | |||||||
| Channel Options | One device for 1-60 channels, standard with single channel (MN), optional MN channel extension and TT sensor | |||||||
| Meas. Mode | MN/TT | |||||||
| Freq. Range (hz) | 0.1-24500 HZ | |||||||
| Filtering | FFT Smart | |||||||
| Discrim. | 0.01mV±2% | |||||||
| Acq. Time (s) | 45s | |||||||
| Connection | 19-pin aviation socket (compatible with MN cables and TT sensors), 7-pin aviation socket (charging port / USB transmission integrated interface), wifi 5, bluetooth 4.2 | |||||||
| Display | 10.1" IPS high brightness touch screen | |||||||
| Resolution | 1024*600 | |||||||
| OS | Android 13 | |||||||
| CPU | RK3568 | |||||||
| GPU | Mali G52 | |||||||
| RAM | LDDR4/4GB | |||||||
| Storage | 32 GB | |||||||
| Core Features | Auto analysis, free software upgrade, one device for all channels, segmented depth survey, real-time curve, color contour mapping | |||||||
| Other Features | GNSS, optional 4G connection | |||||||
| Battery | 6000mAh | |||||||
| Main Device Size | 35.3cm*21.6cm*7.6cm | |||||||
Customer Cases
Maoqi open-pit mining exploration, Burma
Product: Smart Multi-Functional Electrical Method Instrument
Image Interpretation:The gold deposit is located in Maoqi, Myanmar. The gold deposit in this area belongs to the quartz vein type gold deposit. The quartz vein generally shows a red high resistivity reaction on the survey map. The red high-resistance area on the survey map is intermittent, and the actual situation of the gold ore veins in this area is also not continuous. One section is good and the other is not good. The gold veins reflected by the measurement profile are the same as the actual mining rules.
