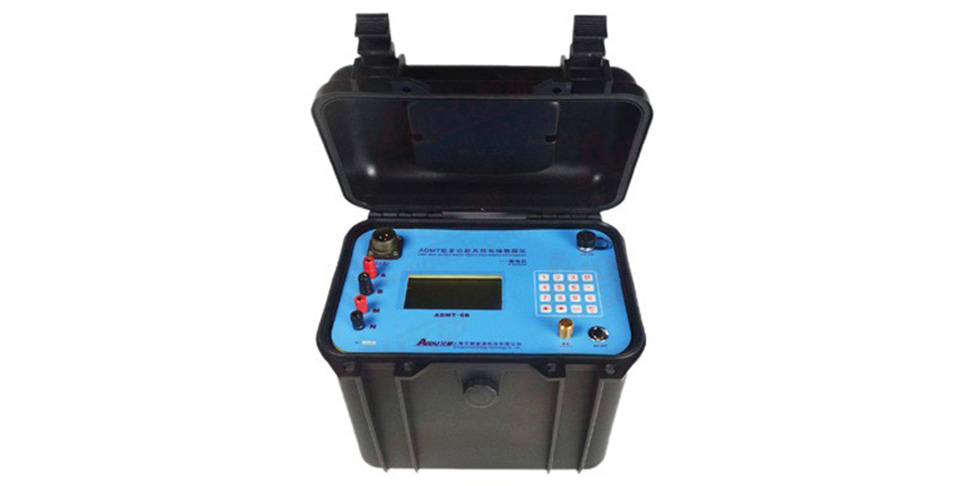

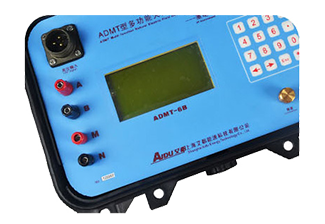

Model:
ADMT-6B
-
Features:
It has changed the disadvantages of traditional electrical exploration equipment in large size, heavy weight, and professional use, making the instrument more compact and lighter, and supporting intelligent analysis software, which has the remarkable char
High Accuracy. using the most advanced circuit design, single chip microcomputer control, automatic noise reduction,digital filtering to highly improve survey accuracy and stability.
Easy to operate.humanized man-machine interface, built-in all kinds of formulas to read VP, IP, RO, M, TH... parameters.
More Parameters.could measure VP, IP, SP, RO, M, TH....
Complete Equipment.four poles to detect depth, intermediate gradient, combined profile, five poles, three poles etc....about 30 kinds.
49 Years Research and Development
Stable Accurate
Free upgrading at the original price after purchasing within six months
The ADMT-6B type IP instrument has changed the traditional electrical exploration equipment's large size, heavy weight, and insufficient professional use, making the instrument more miniaturized, lighter, and supporting intelligent analysis software, with simple operation and use Distinguished feature of convenience.
Light &
Portable
Accurate
& Stable
Fully
Equipped
Simple
Operation
MEET YOUR VARIOUS NEEDS

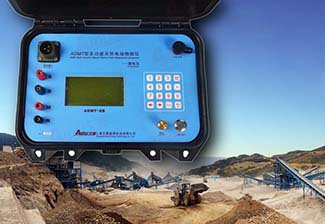

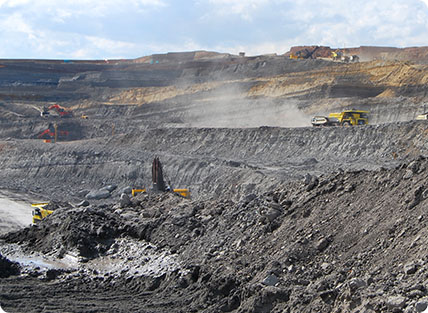

Iron Mineral Exploration
Water Source Survey

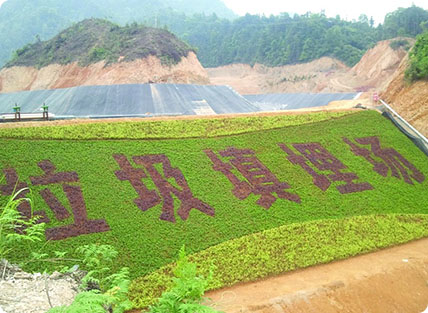

Environmental Census

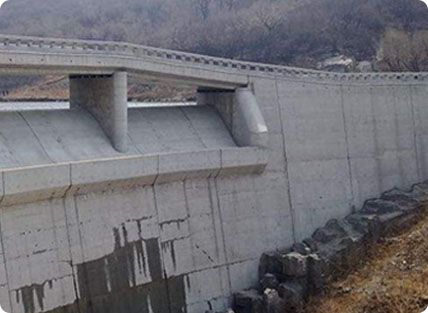

Engineering Investigation
Extensive exploration of detailed surveys and general surveys of various metallic and non-metallic minerals
Extensive exploration for detailed surveys and general surveys of groundwater
It is widely used in environmental protection survey, electric power design, engineering prospecting, geothermal prospecting, coal mine goaf, geological disaster survey, etc.
EIGHT ADVANTAGES
TO HELP YOU EXPLORE WORRY-FREE
High precision
Adopting new circuit design,
single-chip control, automatic noise
reduction, and digital filtering to
greatly improve measurement
accuracy and stability
Simple operation
Humanized man-machine interface,
built-in formulas for various devices
to directly read VP, IP, SP, RO, M, TH
and other related parameters
Rich parameters
Can measure VP, IP, SP, RO, M, TH and other related parameters
Fully equipped
Ten device types including quadrupole sounding, intermediate gradient, joint profile, five poles, and three poles
Safe and reliable
Overvoltage, overcurrent, battery protection and power display, data power-down protection functions, etc.
Stable performance
High-performance circuit shooting. Self-electric compensation and anti-interference ability have reached an excellent state. Field measurements are fairly stable
Perfect after-sales

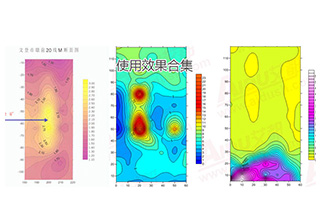

Report by computer
Expert online data analysis
Patented product
Obtained multiple invention patents
(Patent No.: ZL201310205318.9, ZL201110454869.X, ZL201320054153.5, ZL201320303919.9)

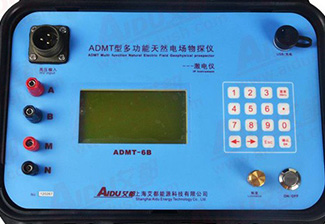

BEAUTIFUL IN SHAPE

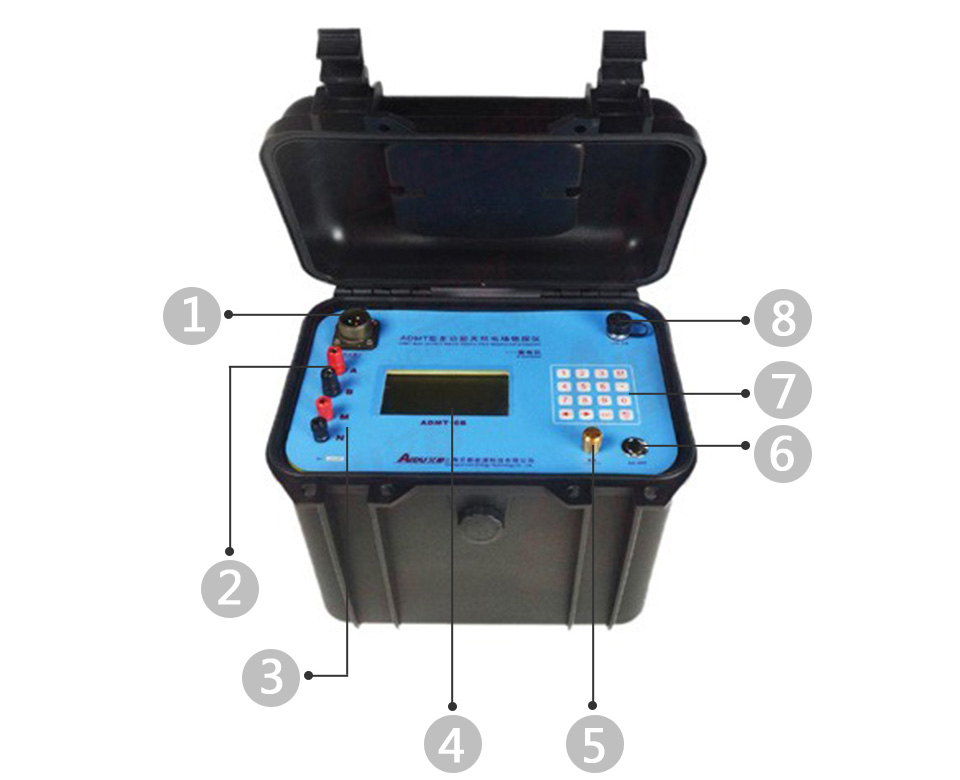

① Power connector ② Power supply AB terminals ③ MN Measurement terminals ④ LCD screen ⑤ Brightness adjustment ⑥ Swtich ⑦ Keyboard ⑧ USB interface
MAIN MODELS
AND TECHNICAL PARAMETERS
| Parameter | ADMT-6B |
|---|---|
| Voltage measurement range | -2500mV～＋2500mV |
| Voltage resolution | 0.01uV |
| Input impedance | ≥50MΩ |
| Apparent susceptibility measurement accuracy | ±1% ±1 word |
| SP compensation range | ±2500mV |
| Current channel | 6A, ±4% ±1 word |
| Current resolution | 0.02uA |
| Suppress 50Hz power frequency interference | Better than 80dB |
| Max. transmit power | 6000W |
| Upper limit of supply voltage | 1000V |
| Upper limit of supply current | 6A |
| Power supply waveform | Pulse width 1-60 seconds, duty ratio 1:1, bipolar |
| RAM | 2GB (support 32GB expansion) |
| Power supply | 14.8V 5200mAH lithium battery |
| Working environment | -10℃～+50℃，95%Rh |
| Storage temperature | -20℃～+60℃ |
SERVING DOZENS OF COUNTRIES AROUND
THE WORLD, WELL RECEIVED BY USERS
PROFESSIONAL TEAM
QUALIFICATION CERTIFICATE
Certificates and Awards: CE, ISO, China National High-tech Enterprise, China National Technical Invention Patent
DEVELOPMENT HISTORY
1973: Developed the domestic short-wire D75 electrical method
1977: Developed an aerial proton magnetometer
1981: Developed domestic resistivity DW83 electrical method
1988: Developed a multi-functional high-power electric method
2001: Developed the NEP series of natural electric field geophysical probes
2005: Completed the "High-Density Electrical Method" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
2011: Completed the "Controllable Source Geodetic Electromagnetic Instrument (CSAMT)" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
2013: Received the support of the Innovation Fund of the Ministry of Science and Technology, and passed the Shanghai High-tech Achievement Transformation Certification
2017: Developed mobile phone water-finding instrument and geophysical instrument, supporting two-dimensional and three-dimensional automatic mapping of Android system
2018: Independent research and development of 16-channel series products to solve the problem of natural electric field source changes, simple, efficient and precise
2021: Water-finding instrument, geophysical prospecting instrument, aerial geophysical prospecting, earthquake advanced prediction system, etc. will be developed for cloud platform big data automatic analysis function
