16-Channel Professional MT Groundwater Detector
  • Model:
    ADMT-200AX-16D, ADMT-500AX-16D
  • Features:
    The Professional 16-channel MT ground water detector ensures stable data acquisition. It offers customizable channels, two measurement modes (MN/TT), and can include high-performance magnetic induction probes for standard MT method survey.

    Automatic Imaging: The 10.1-inch Android touchscreen intelligently generates 2D/3D images and curve graphs.

    Stable and Accurate: Addresses the inconsistencies and fluctuations in the strength of the natural electromagnetic field, significantly enhancing the accuracy of survey results.

    Cross-Device Operation: The instrument, mobile device, and PC can all operate seamlessly using the same backend data.

    Smart and Flexible: Channels from 1 to 14 can be selected, with optional electromagnetic probes for TT mode measurements, and wireless connection to the Gold-rod device.



    16-Channel Professional MT Ground Water Detector


    6-Month Trade-Up Guarantee

    The ADMT series products from AIDU utilize the natural electromagnetic field of the Earth as the source. Based on the principle that electromagnetic waves of different frequencies have varying skin depths in conductive media, these products measure the response sequence of electromagnetic signals from high frequency to low frequency at the surface. This process allows for the understanding of the electrical differences in geological bodies at various depths, thereby determining the occurrence state of the underground geological formations.

    This professional water exploration product simplifies the Magnetotelluric (MT) method by enabling time-divided measurements of the natural electric field or electromagnetic field, facilitating the inversion of resistivity changes in different geological bodies underground. With a combination of portability, efficiency, precision, intelligence, and advanced Internet of Things (IoT) applications, these products are favored by both new and existing users.







    Real-time
    Imaging
    Accurate
    Stable
    Multi-screen
    InterComm
    Simultaneous
    Measurement


    Real-time
    Imaging


    Accurate
    & Stable


    Multi-screen
    InterComm


    Simultaneous
    Measurement



    MEET YOUR VARIOUS NEEDS


    Groundwater Exploration


    Mineral Exploration


    Groundwater Exploration: Used for detecting underground water resources, offering finer slicing and higher precision compared to basic ground water detector, along with more comprehensive functionalities

    Mineral Exploration:Extensively used for both reconnaissance and detailed surveys of metallic and non-metallic mineral deposits. Reduces investment risks and enhances mining success rates and scientific rigor.

    Mine Site Survey:Employed in electromagnetic exploration in mining areas to study the shape and size of ore bodies and estimate the scale of mineral deposits.


    Customer Cases

    The Gold Mine Exploration in Myanmar


    Product: High-Density MT Electromagnetic detector

    Image Interpretation & Drilling Result: This gold mining site is located in Mawchi Myanmar, where the local gold deposits are classified as quartz vein-type gold. In measurement images, the quartz veins typically appear as red high-resistivity zones. The red high-resistivity areas in the measurement images are intermittent, reflecting the actual distribution of gold veins in the region, which also exhibits poor continuity—some sections are rich in gold while others are not. The geological profile represented in the images aligns well with the actual mining results.


    SEVEN ADVANTAGES
    TO HELP YOU EXPLORE WORRY-FREE

    High precision and strong anti-interference

    05.pngThe core module of the instrument adopts integrated packaging, which has high precision and greatly enhanced anti-interference. It is equipped with a high-performance processor to run a variety of algorithms, and the output is stable and accurate, ensuring the accuracy of the instrument in various environments

    Auto Imaging

    06.pngIntuitive touchscreen operation—master it in 5 minutes. Get instant geological images with selectable 2D/3D color maps and various curve graphs after each measurement. Enjoy a seamless user experience

    Adjustable Depth, Smart and Flexible

    03.jpgOptions for depth selection and choices between MN and TT measurement modes

    Multi-Device Data Sharing

    08.pngData operation across the main device, smartphones, and PCs with a single account login, and data sharing among multiple accounts

    AI Automatic Analysis

    aifx (2).pngThis device offers 24/7 free online AI-powered analysis of geological images. The AI system continuously learns and adapts from user feedback, enhancing its accuracy over time. This ensures increasingly precise guidance for water exploration and drilling, providing users with dependable and efficient support

    Free App Upgrades,6-Month Trade-up

    09.pngEnjoy free online upgrades for the included app suite. Plus, exchange your product for a different model at no extra cost within 6 months of your purchase.

    Lifetime Technical Support

    10.pngComprehensive after-sales services, including data processing analysis, equipment maintenance, and online technical guidance, are provided as lifetime technical support


    GOOD AT CORE AND BEAUTIFUL IN SHAPE

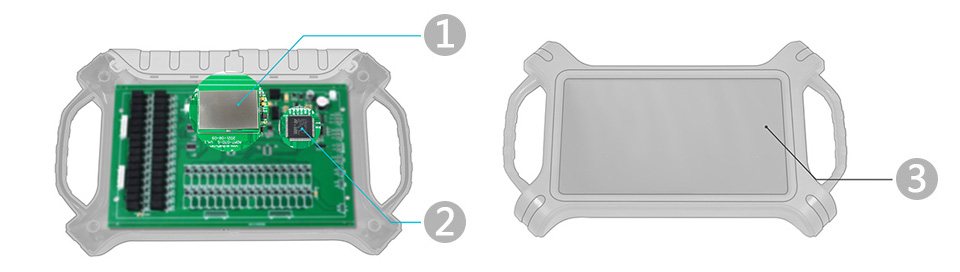

    ① Hi-Fi Signal Conditioning Amplifier Guaranteed signal accuracy
    The analog circuit part of the front-end signal conditioning amplifier of the instrument adopts integrated packaging and shielding, which greatly enhances anti-interference, improves the signal input accuracy, and greatly improves the measurement accuracy of the instrument.

    ② High performance processor Run multiple algorithms
    Adopt high-performance processor, run various algorithms, make the output stable and accurate, and ensure the measurement accuracy of the instrument

    ③ 10.1 inch touch screen operation
    Real-time 2D/3D and curved images

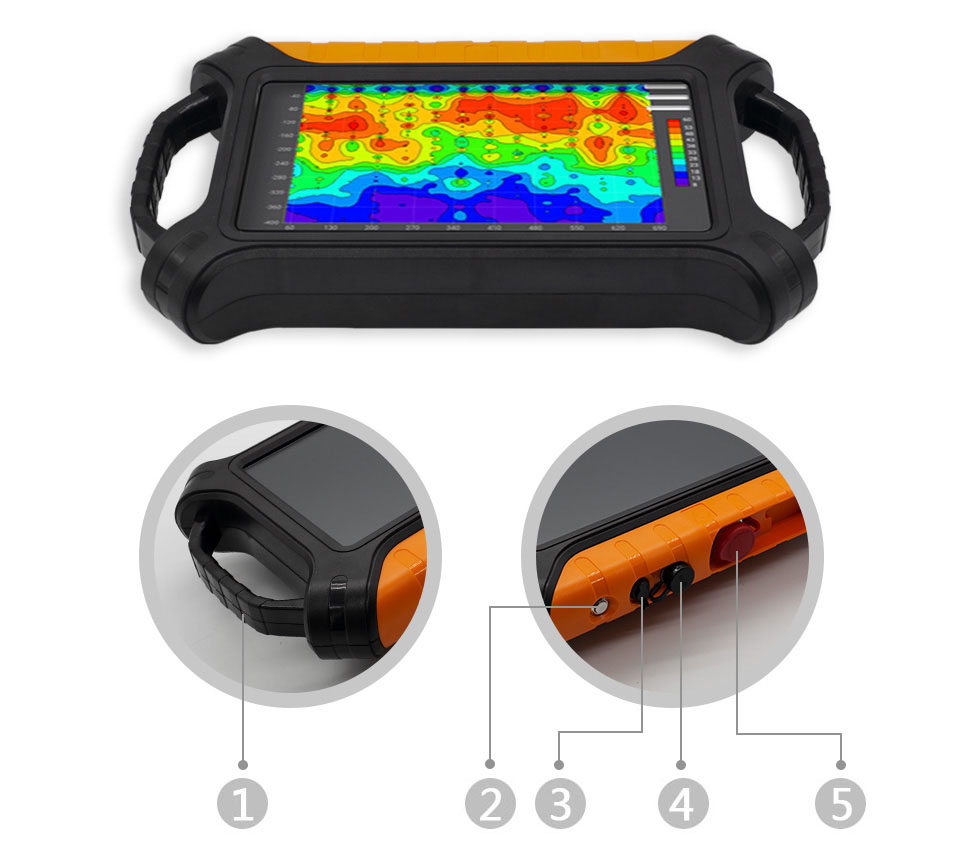

    ① Handles    ② Power Button    ③ Charging Port    ④ Multi-function Data Port    ⑤  Channel Port

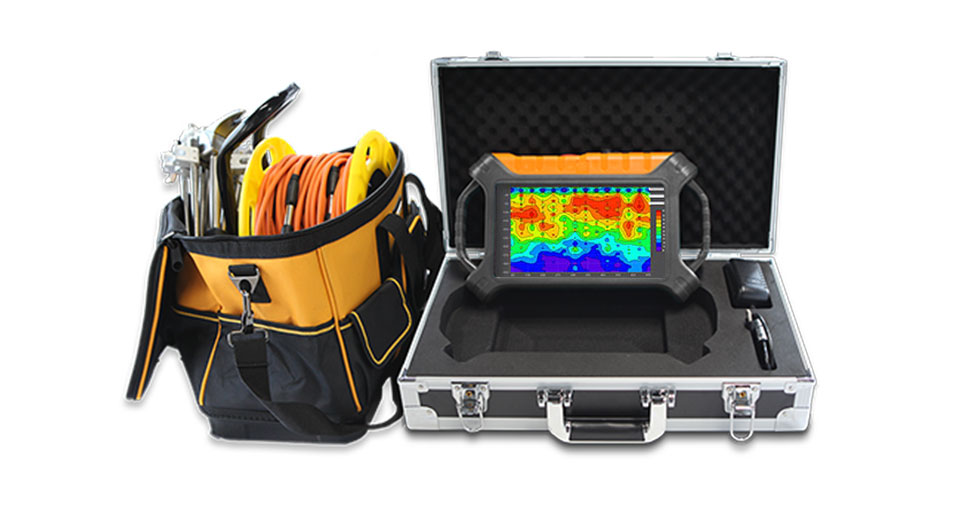

    Accessories


    ① Cable    ② Hammer    ③ Electrodes

    ④ Wired connection probe (optional)
    Capable of operating on various terrains, including concrete, rock, and frozen soil. It can be operated by a single person.

    ⑤ Wireless connection golden rod (optional)
    Fully wireless. Capable of operating on various terrains, including concrete, rock, and frozen soil. It can be operated by a single person.



    MAIN MODELS
    AND TECHNICAL PARAMETERS

    VersionsADMT-200AX-16DADMT-500AX-16D
    Max Depth (m)≤200≤500
    Channel Input16 channels of simultaneous input. Standard maximum electrode spacing: 2.5m; optional: 5m/7.5m/10m
    Channel Options1-14
    Depth Options5 / 10 / 20 / 40 / 60 / 100 / 200 m60 / 100 / 200 / 300 / 400 / 500 m
    Scan Interval10-100 m
    ConnectionSerial port, WiFi, Bluetooth 4.0, USB (optional 4G transmitting)
    Display10.1 inch, IPS wide angle, 178° visual touch screen (1024×600)
    OSAndroid 6.0.1, RAM 1GB, ROM 8GB (expandable up to 128GB)
    CPUARM Cortex-A7, 8-core CPU, 2.0Hz
    GPUOpenGL ES 2.0
    Core FeaturesDepth: optional, channels: optional, real-time 2D/3D imaging, detachable battery
    Meas. ModeMN/TT
    Freq. Range (Hz)1-8K
    Discrim.0.1mV±2%
    Acq. Time (s)40-3600
    Battery900mA/H
    Main Device Weight2.8kg

    Trusted by Millions, CCTV Recommended


    SERVING DOZENS OF COUNTRIES AROUND
    THE WORLD, WELL RECEIVED BY USERS


    PROFESSIONAL SERVICE TEAM


    QUALIFICATION CERTIFICATE

    Certificates and Awards: CE, ISO,  China National High-tech Enterprise, China National Technical Invention Patent


    DEVELOPMENT HISTORY

    1973: Developed the domestic short-wire D75 electrical method
    1977: Developed an aerial proton magnetometer
    1981: Developed domestic resistivity DW83 electrical method
    1988: Developed a multi-functional high-power electric method
    2001: Developed the NEP series of natural electric field geophysical probes
    2005: Completed the "High-Density Electrical Method" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
    2011: Completed the "Controllable Source Geodetic Electromagnetic Instrument (CSAMT)" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
    2013: Received the support of the Innovation Fund of the Ministry of Science and Technology, and passed the Shanghai High-tech Achievement Transformation Certification
    2017: Developed mobile phone water-finding instrument and geophysical instrument, supporting two-dimensional and three-dimensional automatic mapping of Android system
    2018: Independent research and development of 16-channel series products to solve the problem of natural electric field source changes, simple, efficient and precise
    2021: Water-finding instrument, geophysical prospecting instrument, aerial geophysical prospecting, earthquake advanced prediction system, etc. will be developed for cloud platform big data automatic analysis function
    2022: The company was renamed Shanghai Aidu Intelligent Detection Technology Co. Ltd, and expanded its business operations
    2023: Successfully developed a range of proprietary products, including the all-channel speedy ground water detectors, magnetotelluric instruments, and high-density three-component magnetometers
